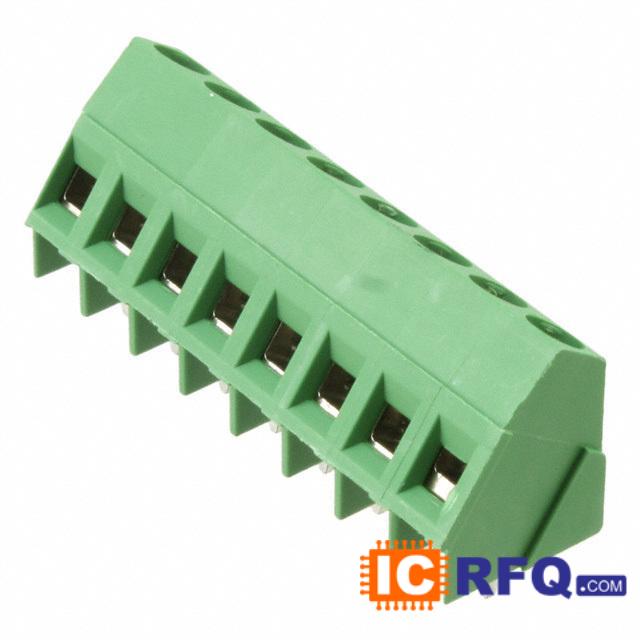

Technical Specifications of 796690-8
| Datasheet |  796690-8 datasheet |
|---|
| Category | Connectors, Interconnects |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Series | Buchanan |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 8 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Mating Orientation | 35° (145°) Angle with Board |
|---|
| Current | 17.5A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 12-30 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screw - Rising Cage Clamp |
|---|
| Features | Interlocking (Side) |
|---|
| Color | Green |
|---|
| Operating Temperature | - |
|---|
| Housing Material | Polyamide (PA66), Nylon 6/6 |
|---|
| Contact Material - Plating | Brass - Tin Plated |
|---|
| Clamp Material - Plating | Brass - Tin Plated |
|---|
| Screw Material - Plating | Brass - Nickel Plated |
|---|
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
|---|
| Screw Thread | M3 |
|---|
We can supply TE Connectivity AMP Connectors part# 796690-8. Use the request quote form to request 796690-8 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 796690-8. The price and lead time for 796690-8 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 796690-8. We look forward to doing business with you.
