1210-0-05-15-00-00-01-0

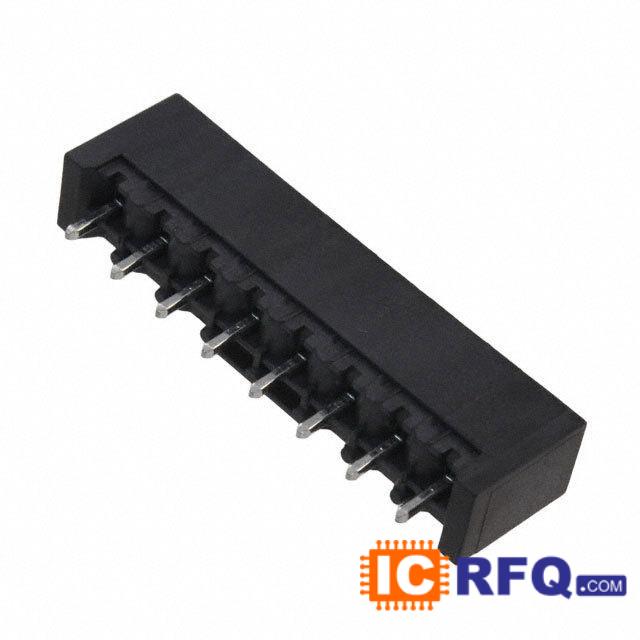

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 1210-0-05-15-00-00-01-0 |
|---|---|
| Manufacturer | Mill-Max Manufacturing Corp. |
| Description | PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Square |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 1210-0-05-15-00-00-01-0 Price |  |
Technical Specifications of 1210-0-05-15-00-00-01-0
| Datasheet |  1210-0-05-15-00-00-01-0 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminals - PC Pin, Single Post Connectors |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 1210 |
| Packaging | Bulk |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.025" (0.64mm) Square |
| Pin Size - Below Flange | - |
| Length Above Flange | 0.349" (8.86mm) |
| Length Below Flange | - |
| Length - Overall | 0.380" (9.65mm) |
| Flange Diameter | 0.062" (1.57mm) |
| Mounting Hole Diameter | 0.053" (1.35mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Knurled, Wire Wrap |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Material - Insulation | - |
| Insulation Color | - |
