2112-1-01-01-00-00-07-0

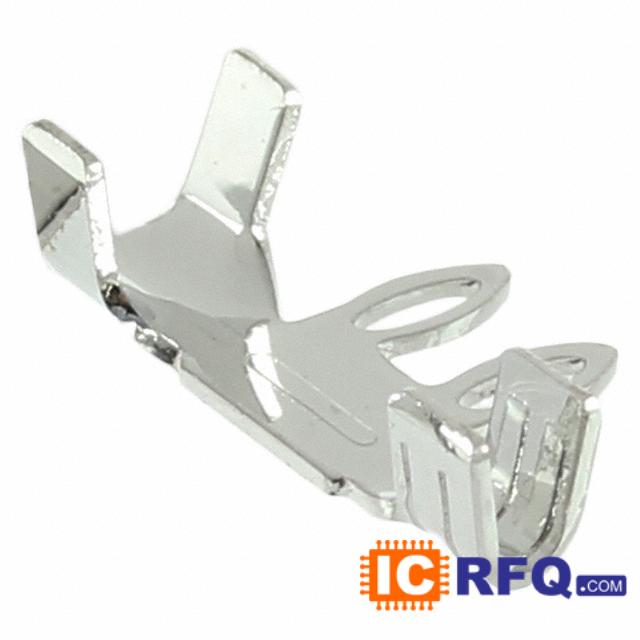

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 2112-1-01-01-00-00-07-0 |
|---|---|
| Manufacturer | Mill-Max Manufacturing Corp. |
| Description | PC Pin Terminal Connector Through Hole Tin-Lead 0.062" (1.57mm) Dia |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| 2112-1-01-01-00-00-07-0 Price |  |
Technical Specifications of 2112-1-01-01-00-00-07-0
| Datasheet |  2112-1-01-01-00-00-07-0 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminals - PC Pin, Single Post Connectors |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 2112 |
| Packaging | Bulk |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Slotted |
| Pin Size - Above Flange | 0.062" (1.57mm) Dia |
| Pin Size - Below Flange | 0.040" (1.02mm) Dia |
| Length Above Flange | 0.125" (3.18mm) |
| Length Below Flange | 0.053" (1.35mm) |
| Length - Overall | 0.178" (4.52mm) |
| Flange Diameter | 0.062" (1.57mm) |
| Mounting Hole Diameter | 0.043" (1.09mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.031" (0.79mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200μin (5.08μm) |
| Material - Insulation | - |
| Insulation Color | - |
