Technical Specifications of JANTX2N2324AS
| Datasheet |  JANTX2N2324AS datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Thyristors - SCRs |
|---|
| Manufacturer | Microsemi IRE Division |
|---|
| Series | Military, MIL-PRF-19500/276 |
|---|
| Packaging | Bulk |
|---|
| Voltage - Off State | 100V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 800mV |
|---|
| Current - Gate Trigger (Igt) (Max) | 200μA |
|---|
| Voltage - On State (Vtm) (Max) | - |
|---|
| Current - On State (It (AV)) (Max) | 220mA |
|---|
| Current - On State (It (RMS)) (Max) | - |
|---|
| Current - Hold (Ih) (Max) | 2mA |
|---|
| Current - Off State (Max) | - |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
|---|
| SCR Type | Sensitive Gate |
|---|
| Operating Temperature | -65°C ~ 125°C |
|---|
| Mounting Type | Through Hole |
|---|

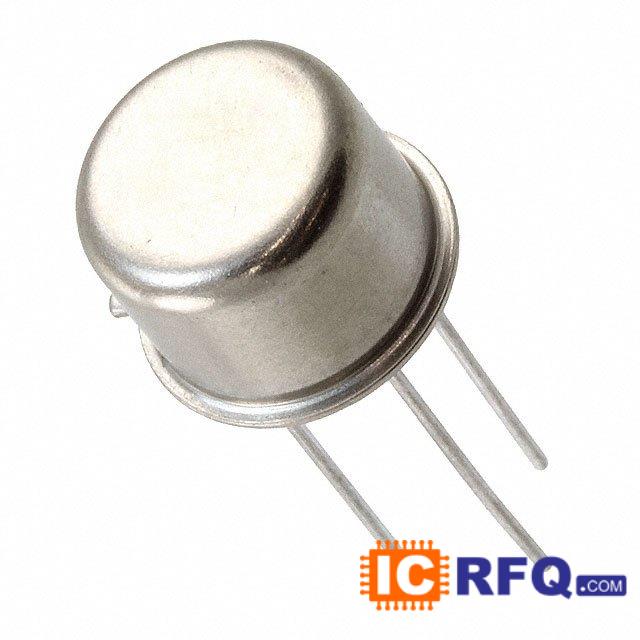

| Package / Case | TO-205AA, TO-5-3 Metal Can |
|---|
| Supplier Device Package | TO-5 |
|---|
We can supply Microsemi IRE Division part# JANTX2N2324AS. Use the request quote form to request JANTX2N2324AS pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JANTX2N2324AS. The price and lead time for JANTX2N2324AS depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# JANTX2N2324AS. We look forward to doing business with you.
