PBLS1504Y,115

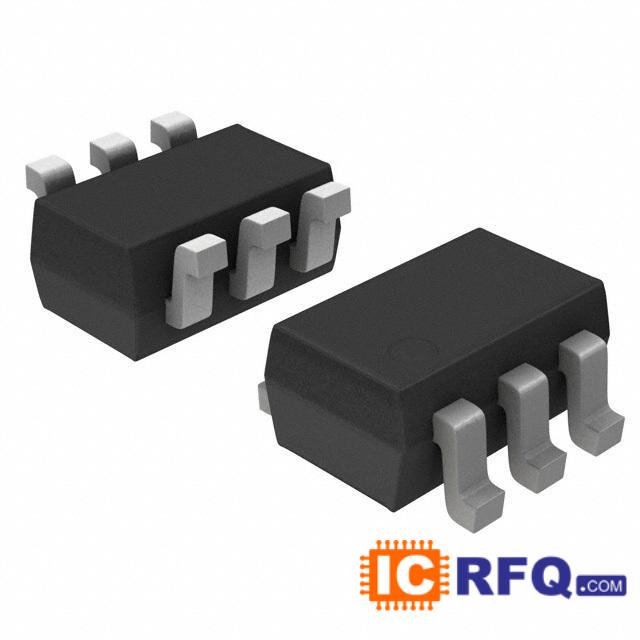

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | PBLS1504Y,115 |
|---|---|
| Manufacturer | NXP Semiconductors |
| Description | TRANS NPN PREBIAS/PNP 6TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| PBLS1504Y,115 Price |  |
Technical Specifications of PBLS1504Y,115
| Datasheet |  PBLS1504Y,115 datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 15V |
| Resistor - Base (R1) (Ohms) | 22k |
| Resistor - Emitter Base (R2) (Ohms) | 22k |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V / 150 @ 100mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500μA, 10mA / 250mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1μA, 100nA |
| Frequency - Transition | 280MHz |
| Power - Max | 300mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP |
