PUMD13,135

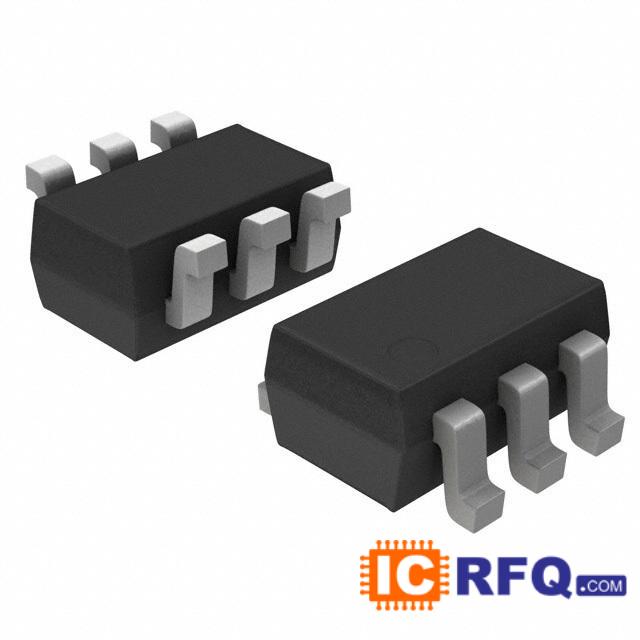

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | PUMD13,135 |
|---|---|
| Manufacturer | NXP Semiconductors |
| Description | TRANS PREBIAS NPN/PNP 6TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| PUMD13,135 Price |  |
Technical Specifications of PUMD13,135
| Datasheet |  PUMD13,135 datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) (Ohms) | 4.7k |
| Resistor - Emitter Base (R2) (Ohms) | 47k |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250μA, 5mA |
| Current - Collector Cutoff (Max) | 1μA |
| Frequency - Transition | - |
| Power - Max | 300mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP |
