EMF5XV6T5G

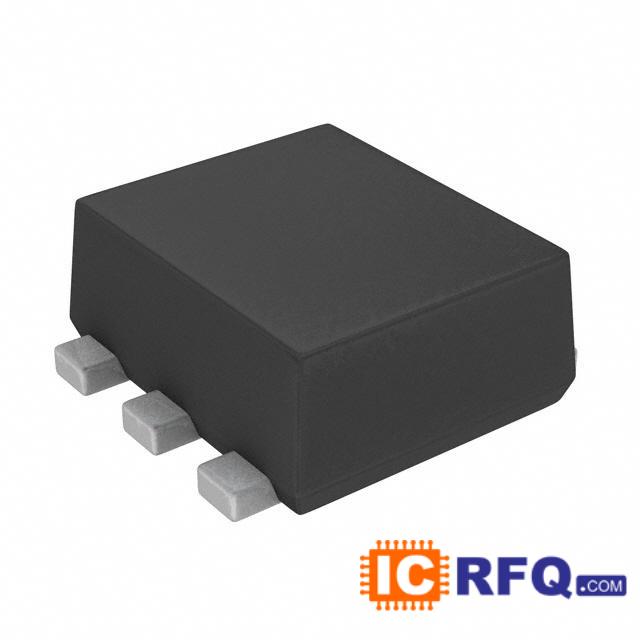

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | EMF5XV6T5G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | TRANS NPN PREBIAS/PNP SOT563 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EMF5XV6T5G Price |  |
Technical Specifications of EMF5XV6T5G
| Datasheet |  EMF5XV6T5G datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Manufacturer | ON Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 12V |
| Resistor - Base (R1) (Ohms) | 47k |
| Resistor - Emitter Base (R2) (Ohms) | 47k |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V / 270 @ 10mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300μA, 10mA / 250mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 500mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
