PQMD2Z

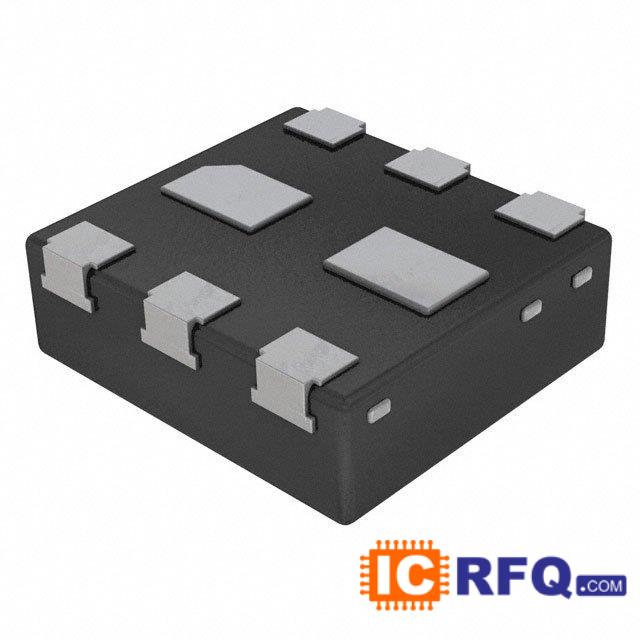

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | PQMD2Z |
|---|---|
| Manufacturer | NXP Semiconductors |
| Description | TRANS NPN/PNP RET 6DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| PQMD2Z Price |  |
Technical Specifications of PQMD2Z
| Datasheet |  PQMD2Z datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Manufacturer | NXP Semiconductors |
| Series | Automotive, AEC-Q101 |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) (Ohms) | 22k |
| Resistor - Emitter Base (R2) (Ohms) | 22k |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500μA, 10mA |
| Current - Collector Cutoff (Max) | 1μA |
| Frequency - Transition | 230MHz, 180MHz |
| Power - Max | 230mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1010B-6 |
