Include WithHome > Products > Discrete Semiconductor > Transistors - Bipolar (BJT) - Single, Pre-Biased > PDTC144WM,315
PDTC144WM,315

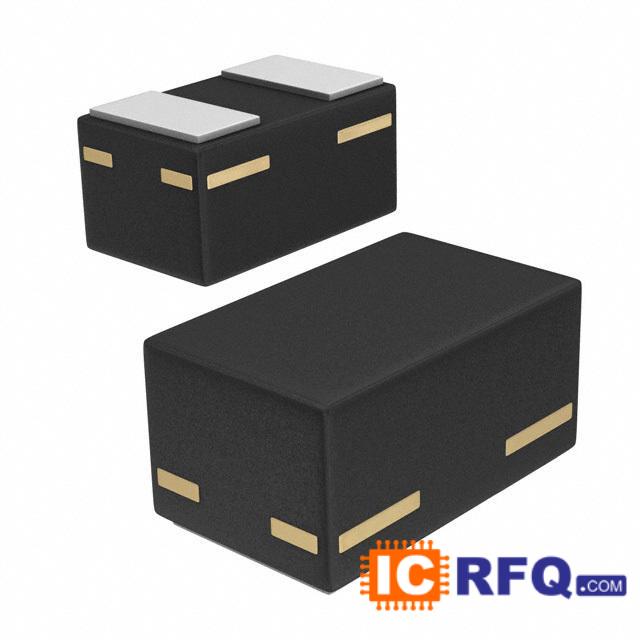

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | PDTC144WM,315 |
|---|---|
| Manufacturer | NXP Semiconductors |
| Description | TRANS PREBIAS NPN 250MW SOT883 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| PDTC144WM,315 Price |  |
Technical Specifications of PDTC144WM,315
| Datasheet |  PDTC144WM,315 datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Single, Pre-Biased |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) (Ohms) | 47k |
| Resistor - Emitter Base (R2) (Ohms) | 22k |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500μA, 10mA |
| Current - Collector Cutoff (Max) | 1μA |
| Frequency - Transition | - |
| Power - Max | 250mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-101, SOT-883 |
| Supplier Device Package | DFN1006-3 |
