SMUN5233T1G

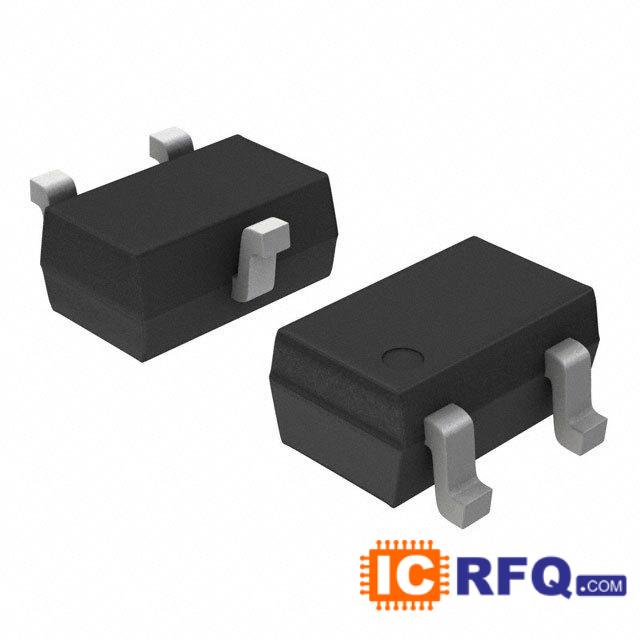

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | SMUN5233T1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | TRANS PREBIAS NPN 0.202W SOT-323 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| SMUN5233T1G Price |  |
Technical Specifications of SMUN5233T1G
| Datasheet |  SMUN5233T1G datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - Bipolar (BJT) - Single, Pre-Biased |
| Manufacturer | ON Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) (Ohms) | 4.7k |
| Resistor - Emitter Base (R2) (Ohms) | 47k |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 202mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
