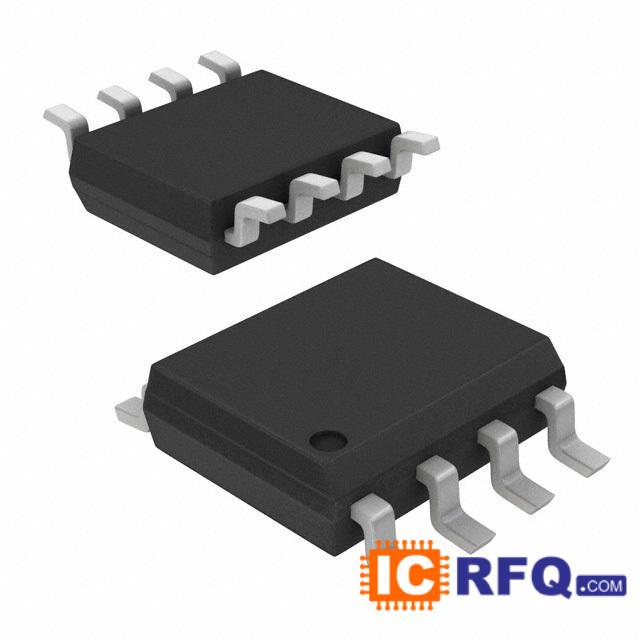

Technical Specifications of DMC3025LSD-13
| Datasheet |  DMC3025LSD-13 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Arrays |
|---|
| Manufacturer | Diodes Incorporated |
|---|
| Series | - |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | N and P-Channel |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 6.5A, 4.2A |
|---|
| Rds On (Max) @ Id, Vgs | 20 mOhm @ 7.4A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 9.8nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 501pF @ 15V |
|---|
| Power - Max | 1.2W |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
|---|
| Supplier Device Package | 8-SO |
|---|
We can supply Diodes Incorporated part# DMC3025LSD-13. Use the request quote form to request DMC3025LSD-13 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMC3025LSD-13. The price and lead time for DMC3025LSD-13 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# DMC3025LSD-13. We look forward to doing business with you.
