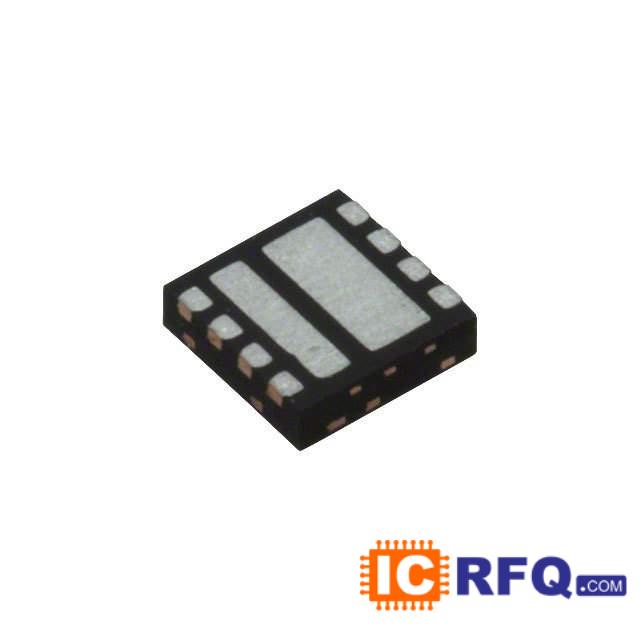

Technical Specifications of SIZ914DT-T1-GE3
| Datasheet |  SIZ914DT-T1-GE3 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Arrays |
|---|
| Manufacturer | Vishay Siliconix |
|---|
| Series | TrenchFET? |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | 2 N-Channel (Half Bridge) |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 16A, 40A |
|---|
| Rds On (Max) @ Id, Vgs | 6.4 mOhm @ 19A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.4V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 26nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 1208pF @ 15V |
|---|
| Power - Max | 22.7W, 100W |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 8-WDFN Exposed Pad |
|---|
| Supplier Device Package | 8-PowerPair? |
|---|
We can supply Vishay Siliconix part# SIZ914DT-T1-GE3. Use the request quote form to request SIZ914DT-T1-GE3 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIZ914DT-T1-GE3. The price and lead time for SIZ914DT-T1-GE3 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# SIZ914DT-T1-GE3. We look forward to doing business with you.
