SSM6P41FE(TE85L,F)

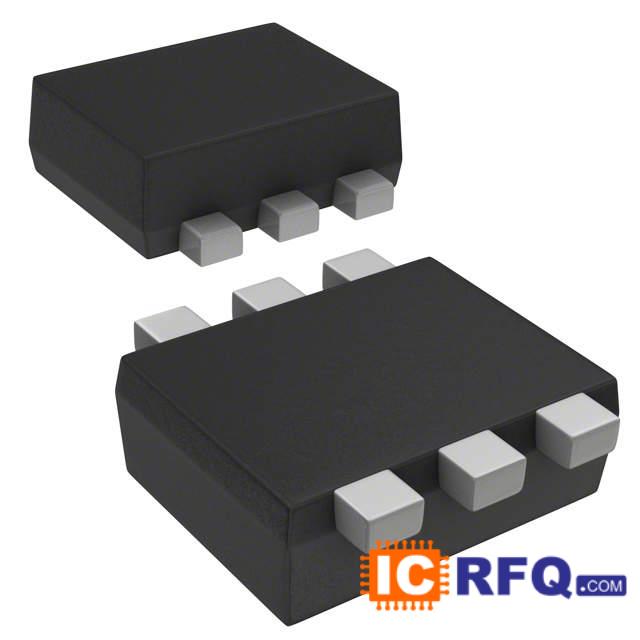

.jpg)
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | SSM6P41FE(TE85L,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET 2P-CH 20V 0.72A ES6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| SSM6P41FE(TE85L,F) Price |  |
Technical Specifications of SSM6P41FE(TE85L,F)
| Datasheet |  SSM6P41FE(TE85L,F) datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - FETs, MOSFETs - Arrays |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR) |
| FET Type | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 720mA |
| Rds On (Max) @ Id, Vgs | 300 mOhm @ 400mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) @ Vgs | 1.76nC @ 4.5V |
| Input Capacitance (Ciss) @ Vds | 110pF @ 10V |
| Power - Max | 150mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | ES6 (1.6x1.6) |
