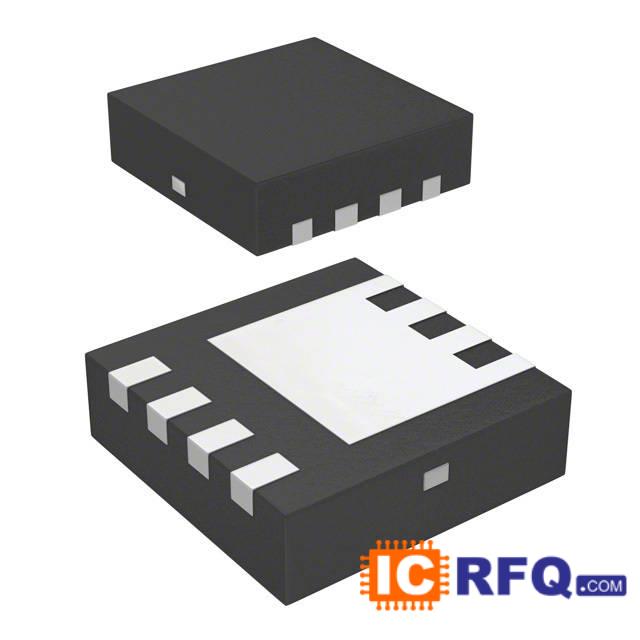

Technical Specifications of TMC1320-LA
| Datasheet |  TMC1320-LA datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Arrays |
|---|
| Manufacturer | Trinamic Motion Control GmbH |
|---|
| Series | - |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | N and P-Channel, Common Drain |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 7.3A, 5.3A |
|---|
| Rds On (Max) @ Id, Vgs | 30 mOhm @ 4A, 10V |
|---|
| Vgs(th) (Max) @ Id | 3V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 7.2nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 400pF @ 25V |
|---|
| Power - Max | 2.5W |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 8-PowerTDFN |
|---|
| Supplier Device Package | 8-PQFN (3x3) |
|---|
We can supply Trinamic Motion Control GmbH part# TMC1320-LA. Use the request quote form to request TMC1320-LA pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TMC1320-LA. The price and lead time for TMC1320-LA depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# TMC1320-LA. We look forward to doing business with you.
