Technical Specifications of NP80N04PLG-E1B-AY
| Datasheet |  NP80N04PLG-E1B-AY datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Single |
|---|
| Manufacturer | Renesas Electronics America |
|---|
| Series | - |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 40V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 4.5 mOhm @ 40A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 135nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 6900pF @ 25V |
|---|
| Power - Max | 1.8W |
|---|
| Operating Temperature | 175°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

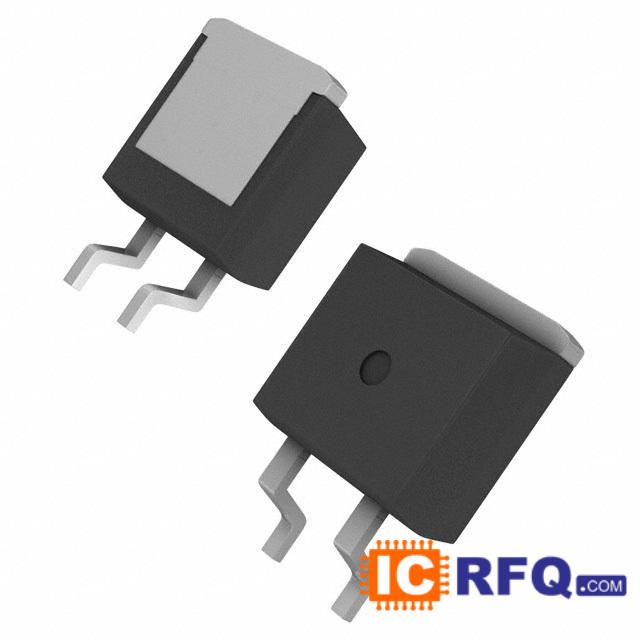

| Package / Case | TO-263-3, D2Pak (2 Leads + Tab), TO-263AB |
|---|
| Supplier Device Package | TO-263 |
|---|
We can supply Renesas Electronics America part# NP80N04PLG-E1B-AY. Use the request quote form to request NP80N04PLG-E1B-AY pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NP80N04PLG-E1B-AY. The price and lead time for NP80N04PLG-E1B-AY depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# NP80N04PLG-E1B-AY. We look forward to doing business with you.
