Technical Specifications of PSMN1R5-30YLC,115
| Datasheet |  PSMN1R5-30YLC,115 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Single |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Series | - |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Logic Level Gate, 4.5V Drive |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 1.55 mOhm @ 25A, 10V |
|---|
| Vgs(th) (Max) @ Id | 1.95V @ 1mA |
|---|
| Gate Charge (Qg) @ Vgs | 65nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 4044pF @ 15V |
|---|
| Power - Max | 179W |
|---|
| Operating Temperature | -55°C ~ 175°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

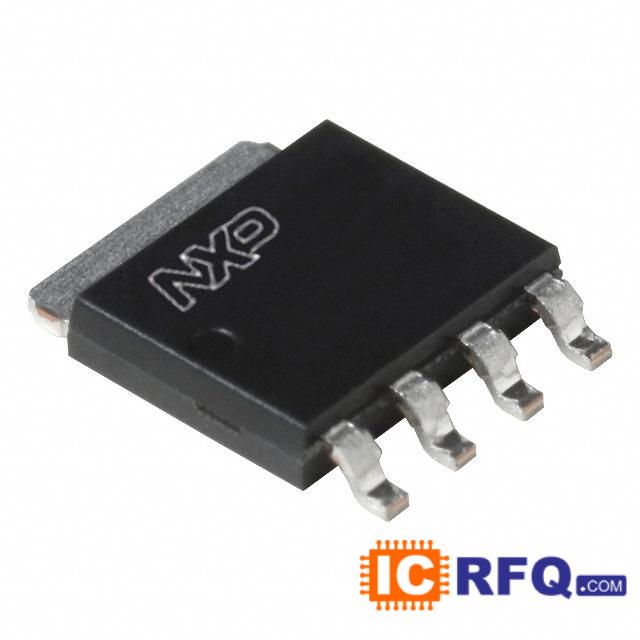

| Package / Case | SC-100, SOT-669, 4-LFPAK |
|---|
| Supplier Device Package | LFPAK, Power-SO8 |
|---|
We can supply NXP Semiconductors part# PSMN1R5-30YLC,115. Use the request quote form to request PSMN1R5-30YLC,115 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN1R5-30YLC,115. The price and lead time for PSMN1R5-30YLC,115 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# PSMN1R5-30YLC,115. We look forward to doing business with you.
