IPD100N04S402ATMA1

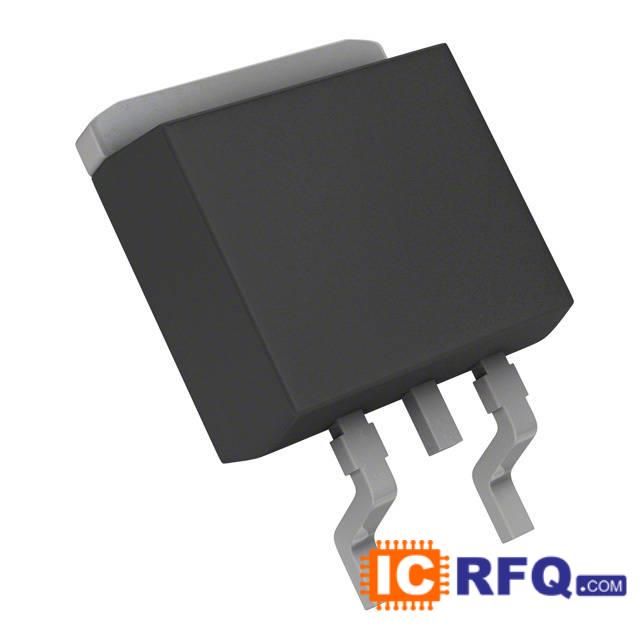

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | IPD100N04S402ATMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | MOSFET N-CH 40V 100A TO252-3-313 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| IPD100N04S402ATMA1 Price |  |
Technical Specifications of IPD100N04S402ATMA1
| Datasheet |  IPD100N04S402ATMA1 datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - FETs, MOSFETs - Single |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS? |
| Packaging | Tape & Reel (TR) |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Rds On (Max) @ Id, Vgs | 2 mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 95μA |
| Gate Charge (Qg) @ Vgs | 118nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 9430pF @ 25V |
| Power - Max | 150W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | PG-TO252-3-313 |
