IPI120N04S302AKSA1

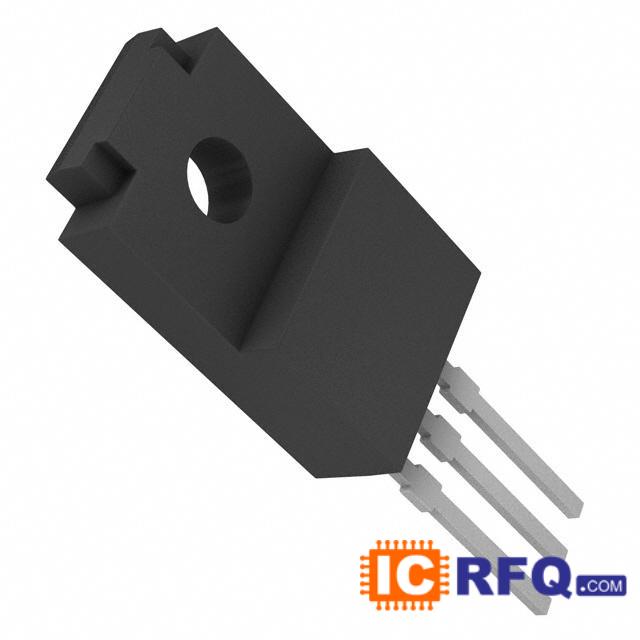

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | IPI120N04S302AKSA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | MOSFET N-CH 40V 120A TO262-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| IPI120N04S302AKSA1 Price |  |
Technical Specifications of IPI120N04S302AKSA1
| Datasheet |  IPI120N04S302AKSA1 datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors - FETs, MOSFETs - Single |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS? |
| Packaging | Tube |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.3 mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 230μA |
| Gate Charge (Qg) @ Vgs | 210nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 14300pF @ 25V |
| Power - Max | 300W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-262-3 Long Leads, I2Pak, TO-262AA |
| Supplier Device Package | PG-TO262-3 |
