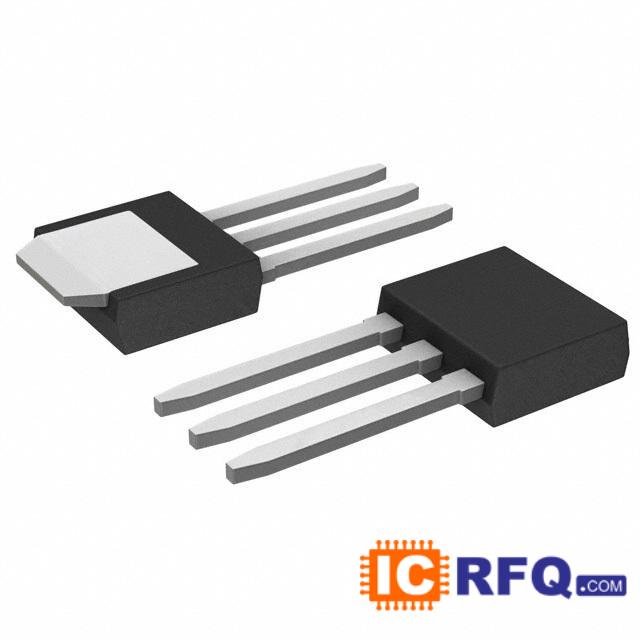

Technical Specifications of NDD02N40-1G
| Datasheet |  NDD02N40-1G datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Single |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Series | - |
|---|
| Packaging | Tube |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 400V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 1.7A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 5.5 Ohm @ 220mA, 10V |
|---|
| Vgs(th) (Max) @ Id | 2V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 5.5nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 121pF @ 25V |
|---|
| Power - Max | 39W |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
|---|
| Supplier Device Package | I-Pak |
|---|
We can supply ON Semiconductor part# NDD02N40-1G. Use the request quote form to request NDD02N40-1G pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NDD02N40-1G. The price and lead time for NDD02N40-1G depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# NDD02N40-1G. We look forward to doing business with you.
