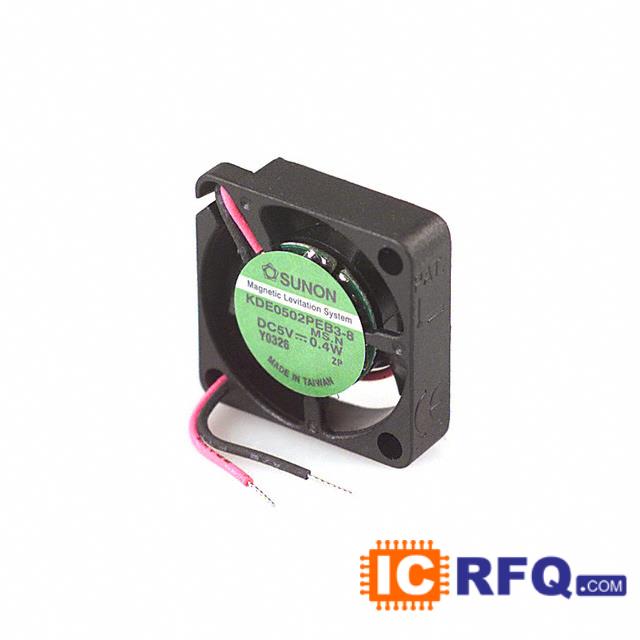

Technical Specifications of KDE0502PEB3-8 (MS.N)
| Category | Fans, Thermal Management |
|---|
| Family | DC Fans |
|---|
| Manufacturer | Sunon Fans |
|---|
| Series | MagLev? |
|---|
| Voltage - Rated | 5VDC |
|---|
| Size / Dimension | Square - 25mm L x 25mm H |
|---|
| Width | 6.90mm |
|---|
| Air Flow | 1.4 CFM (0.040m3/min) |
|---|
| Static Pressure | 0.070 in H2O (17.4 Pa) |
|---|
| Bearing Type | Ball |
|---|
| Fan Type | Tubeaxial |
|---|
| Features | - |
|---|
| Noise | 16 dB(A) |
|---|
| Power (Watts) | 0.40W |
|---|
| RPM | 7000 RPM |
|---|
| Termination | 2 Wire Leads |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
|---|
| Approvals | CE, CUR, TUV, UL |
|---|
| Current Rating | 0.080A |
|---|
| Voltage Range | 3 ~ 6VDC |
|---|
| Material - Frame | Polybutylene Terephthalate (PBT) |
|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
|---|
| Weight | 0.011 lb (4.99g) |
|---|
We can supply Sunon Fans part# KDE0502PEB3-8 (MS.N). Use the request quote form to request KDE0502PEB3-8 (MS.N) pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KDE0502PEB3-8 (MS.N). The price and lead time for KDE0502PEB3-8 (MS.N) depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# KDE0502PEB3-8 (MS.N). We look forward to doing business with you.
