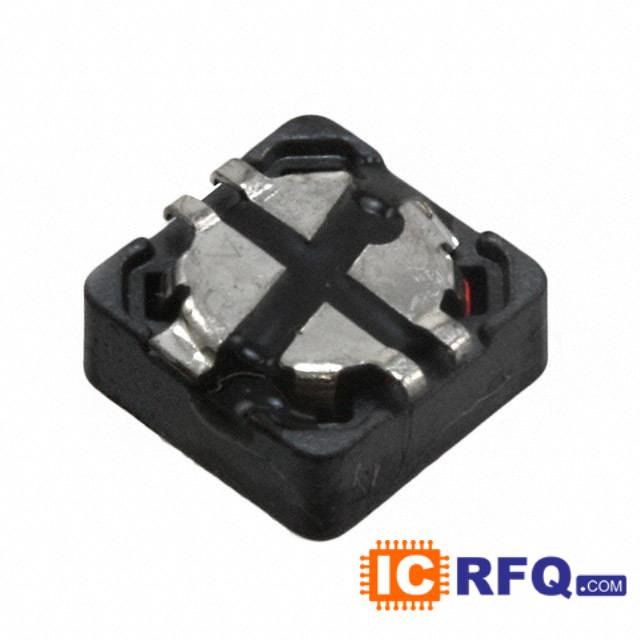

Technical Specifications of DRQ73-220-R
| Datasheet |  DRQ73-220-R datasheet |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Family | Arrays, Signal Transformers |
|---|
| Manufacturer | Eaton |
|---|
| Series | DRQ |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Part Status | Active |
|---|
| Number of Coils | 2 |
|---|
| Inductance - Connected In Series | 90.6μH |
|---|
| Inductance - Connected In Parallel | 22.65μH |
|---|
| Tolerance | ±20% |
|---|
| Current Rating - Parallel | 1.62A |
|---|
| Current Rating - Series | 811mA |
|---|
| Current Saturation - Parallel | 1.67A |
|---|
| Current Saturation - Series | 830mA |
|---|
| DC Resistance (DCR) - Parallel | 107 mOhm |
|---|
| DC Resistance (DCR) - Series | 429 mOhm |
|---|
| Shielding | Shielded |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Nonstandard |
|---|
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
|---|
| Height | 0.140" (3.55mm) |
|---|
We can supply Eaton part# DRQ73-220-R. Use the request quote form to request DRQ73-220-R pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DRQ73-220-R. The price and lead time for DRQ73-220-R depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# DRQ73-220-R. We look forward to doing business with you.
