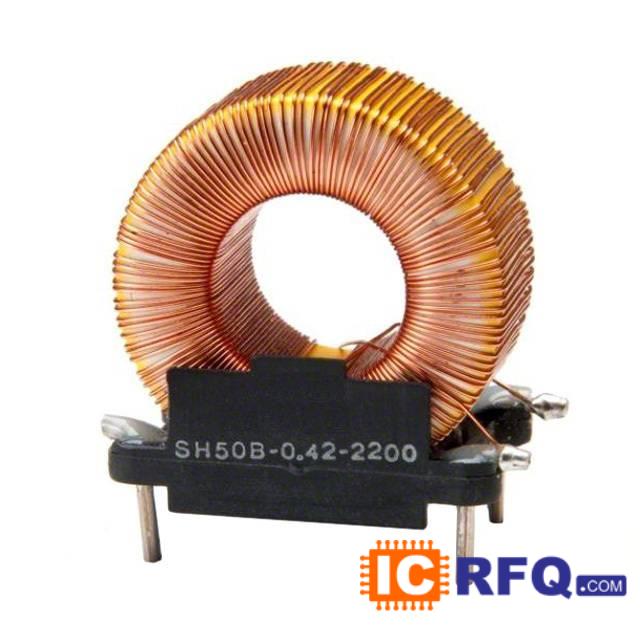

Technical Specifications of SH50B-0.42-2200
| Datasheet |  SH50B-0.42-2200 datasheet |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Family | Fixed Inductors |
|---|
| Manufacturer | Amgis, LLC |
|---|
| Series | SH50 |
|---|
| Packaging | Tray |
|---|
| Part Status | Active |
|---|
| Type | Toroidal |
|---|
| Material - Core | Powdered Iron |
|---|
| Inductance | 2.2mH |
|---|
| Tolerance | ±20% |
|---|
| Current Rating | 420mA |
|---|
| Current - Saturation | - |
|---|
| Shielding | Unshielded |
|---|
| DC Resistance (DCR) | 1.8 Ohm Max |
|---|
| Q @ Freq | - |
|---|
| Frequency - Self Resonant | - |
|---|
| Ratings | - |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Frequency - Test | 10kHz |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | Radial |
|---|
| Size / Dimension | 1.450" L x 0.800" W (36.80mm x 20.30mm) |
|---|
| Height - Seated (Max) | 1.380" (35.00mm) |
|---|
We can supply Amgis, LLC part# SH50B-0.42-2200. Use the request quote form to request SH50B-0.42-2200 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SH50B-0.42-2200. The price and lead time for SH50B-0.42-2200 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# SH50B-0.42-2200. We look forward to doing business with you.
