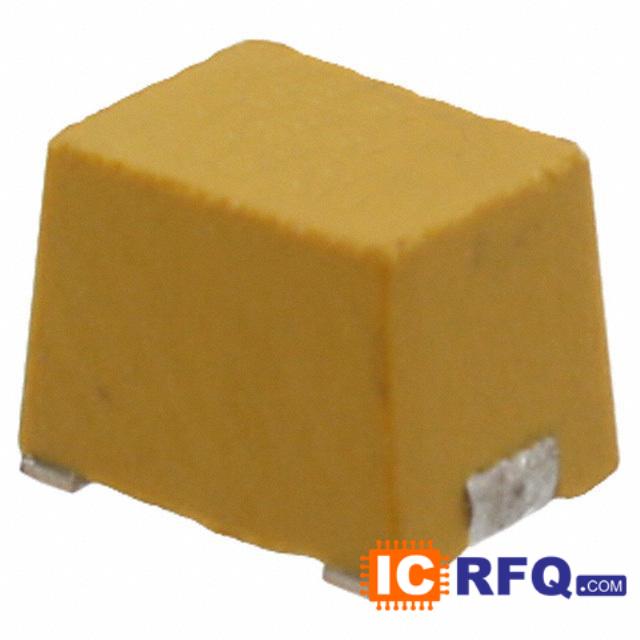

Technical Specifications of IMC1812EB8R2J
| Datasheet |  IMC1812EB8R2J datasheet |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Family | Fixed Inductors |
|---|
| Manufacturer | Vishay Dale |
|---|
| Series | IMC-1812 |
|---|
| Packaging | Bulk |
|---|
| Part Status | Active |
|---|
| Type | Wirewound |
|---|
| Material - Core | Powdered Iron |
|---|
| Inductance | 8.2μH |
|---|
| Tolerance | ±5% |
|---|
| Current Rating | 270mA |
|---|
| Current - Saturation | - |
|---|
| Shielding | Unshielded |
|---|
| DC Resistance (DCR) | 1.4 Ohm Max |
|---|
| Q @ Freq | 50 @ 7.96MHz |
|---|
| Frequency - Self Resonant | 25MHz |
|---|
| Ratings | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Frequency - Test | 7.96MHz |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 1812 (4532 Metric) |
|---|
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
|---|
| Height - Seated (Max) | 0.134" (3.40mm) |
|---|
We can supply Vishay Dale part# IMC1812EB8R2J. Use the request quote form to request IMC1812EB8R2J pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IMC1812EB8R2J. The price and lead time for IMC1812EB8R2J depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IMC1812EB8R2J. We look forward to doing business with you.
