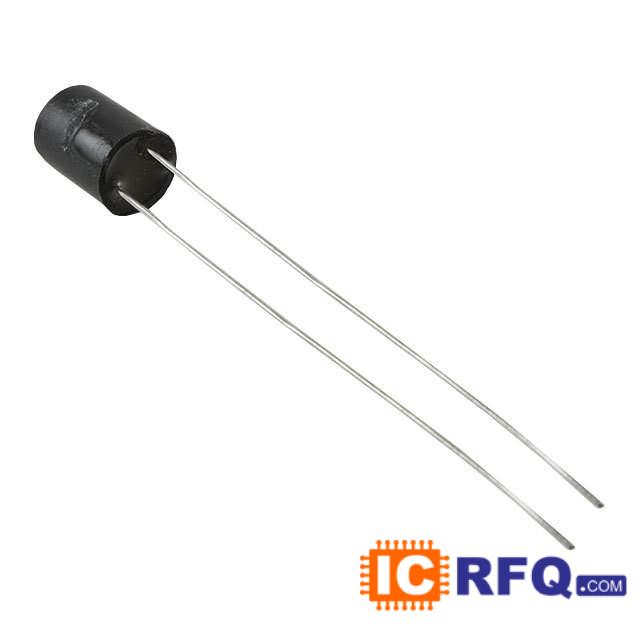

Technical Specifications of 2534-76L
| Datasheet |  2534-76L datasheet |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Family | Fixed Inductors |
|---|
| Manufacturer | API Delevan Inc. |
|---|
| Series | 2534 |
|---|
| Packaging | Bulk |
|---|
| Part Status | Active |
|---|
| Type | Molded |
|---|
| Material - Core | Ferrite |
|---|
| Inductance | 150mH |
|---|
| Tolerance | ±15% |
|---|
| Current Rating | 12mA |
|---|
| Current - Saturation | - |
|---|
| Shielding | Unshielded |
|---|
| DC Resistance (DCR) | 1.1 kOhm Max |
|---|
| Q @ Freq | 25 @ 50kHz |
|---|
| Frequency - Self Resonant | 100kHz |
|---|
| Ratings | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Frequency - Test | 50kHz |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | Radial |
|---|
| Size / Dimension | 0.250" Dia (6.35mm) |
|---|
| Height - Seated (Max) | 0.345" (8.76mm) |
|---|
We can supply API Delevan Inc. part# 2534-76L. Use the request quote form to request 2534-76L pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2534-76L. The price and lead time for 2534-76L depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 2534-76L. We look forward to doing business with you.
