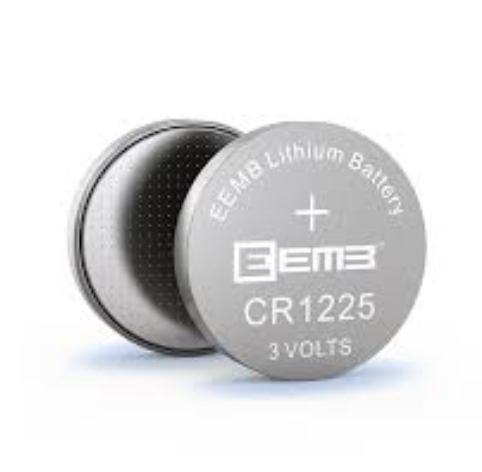

The CR1225 battery is a compact, coin-shaped lithium cell widely used in small electronic devices. Known for its reliability and long shelf life, it provides a stable power source for applications requiring minimal space. This article explores its specifications, chemistry, applications, safety, and more.

Specifications

• Chemical Composition: Lithium Manganese Dioxide (Li-MnO?).

• Nominal Voltage: 3 Volts.

• Dimensions: 12.5 mm diameter, 2.5 mm height (Note: Some manufacturers list diameter as 12.0 mm).

• Capacity: ~48–50 mAh (milliampere-hours), depending on brand and load conditions.

• Weight: Approximately 0.6–0.8 grams.

• Operating Temperature: -30°C to 60°C (-22°F to 140°F).

• Terminals: Positive terminal (top, inscribed side) and negative terminal (flat bottom).

Chemistry & Construction

The CR1225 employs lithium manganese dioxide chemistry, offering high energy density and stable voltage output. Its construction includes:

• Anode: Lithium metal.

• Cathode: Manganese dioxide.

• Electrolyte: A lithium salt dissolved in an organic solvent.

• Housing: Stainless steel with a gasket to prevent leakage.

Applications

Designed for low-drain devices, common uses include:

• Consumer Electronics: Watches, calculators, key fobs, and LED lights.

• Medical Devices: Hearing aids, glucose monitors.

• Computers: Backup power for CMOS memory (less common than CR2032).

• IoT Devices: Sensors, fitness trackers.

Comparison with Similar Batteries

Key Differences:

• CR1225 vs. CR1216/CR1220: Higher capacity due to increased height.

• CR1225 vs. CR2032: Smaller diameter and lower capacity; used where space is constrained.

Storage & Handling

• Shelf Life: Up to 10 years at 20°C (68°F) with minimal self-discharge (~1% per year).

• Storage Tips:

• Keep in original packaging until use.

• Store in cool, dry environments away from metal objects.

• Avoid temperatures above 60°C to prevent leakage.

Safety Considerations

• Do Not: Short-circuit, puncture, or expose to fire.

• Avoid: Mixing old and new batteries or different chemistries.

• Installation: Ensure correct polarity (+/-) to prevent damage.

Disposal & Environmental Impact

• Recycling: Lithium batteries contain toxic materials; recycle via certified e-waste programs.

• Regulations: Follow local guidelines (e.g., U.S. EPA standards).

Leading Manufacturers

• Panasonic: Known for high reliability.

• Energizer: Widely available with consistent performance.

• Sony, Maxell, Toshiba: Trusted alternatives with similar specs.

FAQs

1. Can I substitute CR1225 with CR1216?

• Only if the device accommodates the thinner profile; expect reduced runtime.

2. What if my CR1225 battery leaks?

• Dispose immediately using gloves; clean the device with isopropyl alcohol.

3. Where can I buy CR1225 batteries?

• Available online (Amazon, eBay), electronics stores, and pharmacies.

4. How do I check battery voltage?

• Use a multimeter; a reading below 2.8V indicates replacement is needed.

Conclusion

The CR1225 is a versatile, long-lasting power solution for compact electronics. Understanding its specs, proper handling, and disposal ensures optimal performance and environmental responsibility. Always consult device manuals and manufacturer guidelines for compatibility.

Final Tip: For devices requiring higher capacity, consider CR1225 over CR1216/CR1220 if space permits, but never force a battery into an incompatible compartment.
