NC7SV58L6X_F113

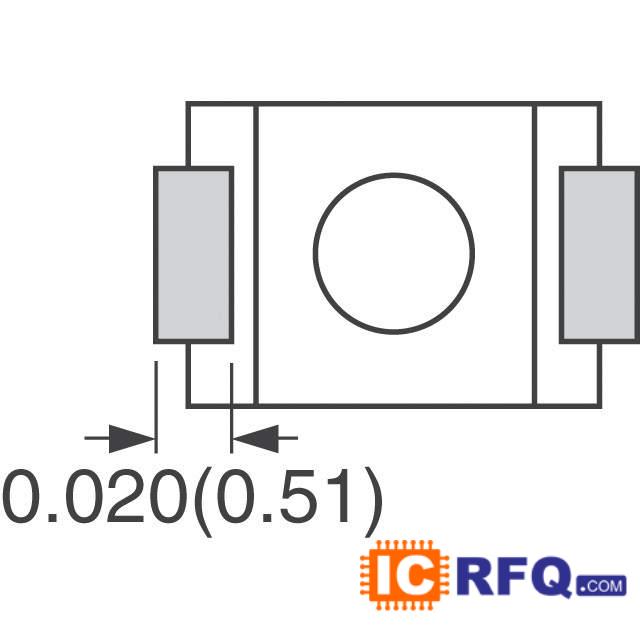

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | NC7SV58L6X_F113 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | Configurable Multiple Function Configurable 1 Circuit 2 Input 6-MicroPak |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| NC7SV58L6X_F113 Price |  |
Technical Specifications of NC7SV58L6X_F113
| Datasheet |  NC7SV58L6X_F113 datasheet |
|---|---|
| Category | Integrated Circuits (ICs) |
| Family | Logic - Gates and Inverters - Multi-Function, Configurable |
| Manufacturer | Fairchild Semiconductor |
| Series | 7SV |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Logic Type | Configurable Multiple Function |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Schmitt Trigger Input | No |
| Output Type | Single-Ended |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 0.9 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-MicroPak |
