| No. |
Part Number |
Image |
Manufacturer |
Description |
Action |
| 701 |
CTX68-4A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 272.8μH Inductance - Connected in Series 68.21μH Inductance - Connected in Parallel 153 mOhm Max DC Resistance (DCR) - Parallel 1.7A Nonstandard |
  |
| 702 |
CTX50-4A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 200.4μH Inductance - Connected in Series 50.11μH Inductance - Connected in Parallel 104 mOhm Max DC Resistance (DCR) - Parallel 2.05A Nonstandard |
|
| 703 |
CTX200-4A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 801.8μH Inductance - Connected in Series 200.4μH Inductance - Connected in Parallel 521 mOhm Max DC Resistance (DCR) - Parallel 920mA Nonstandard |
|
| 704 |
PM600-02-RC |
|
Bourns Inc. |
Unshielded 6 Coil Inductor Array 3.23mH Inductance - Connected in Series 89.6μH Inductance - Connected in Parallel 23 mOhm DC Resistance (DCR) - Parallel 4.26A Nonstandard |
|
| 705 |
PM600-01-RC |
|
Bourns Inc. |
Unshielded 6 Coil Inductor Array 7.25mH Inductance - Connected in Series 201.6μH Inductance - Connected in Parallel 54 mOhm DC Resistance (DCR) - Parallel 2.76A Nonstandard |
|
| 706 |

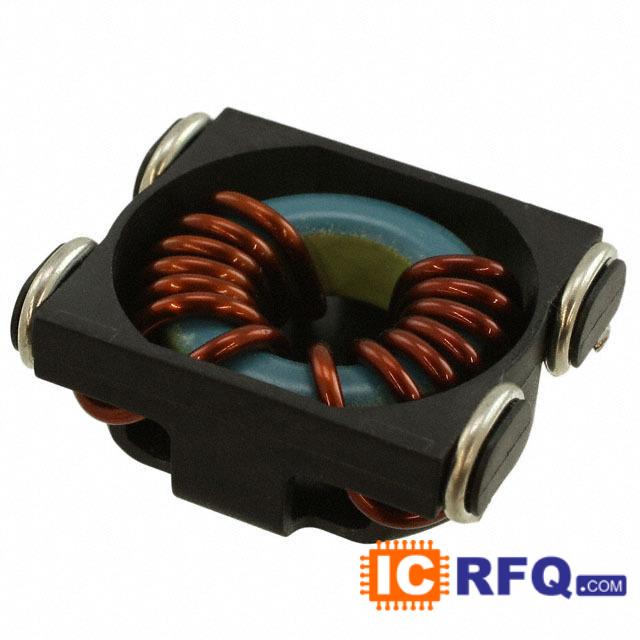

P0597NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 22.8μH Inductance - Connected in Series 5.7μH Inductance - Connected in Parallel 2.5 mOhm Max DC Resistance (DCR) - Parallel 27A Nonstandard |
|
| 707 |
CTX68-2A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 265.8μH Inductance - Connected in Series 66.44μH Inductance - Connected in Parallel 342 mOhm Max DC Resistance (DCR) - Parallel 1.07A Nonstandard |
|
| 708 |
CTX8-2-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 31.77μH Inductance - Connected in Series 7.94μH Inductance - Connected in Parallel 27 mOhm Max DC Resistance (DCR) - Parallel 2.6A Nonstandard |
|
| 709 |
CTX2-2-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 9.21μH Inductance - Connected in Series 2.3μH Inductance - Connected in Parallel 10 mOhm Max DC Resistance (DCR) - Parallel 4.5A Nonstandard |
|
| 710 |
CTX0.68-2-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 3.01μH Inductance - Connected in Series 750nH Inductance - Connected in Parallel 6 mOhm Max DC Resistance (DCR) - Parallel 5.5A Nonstandard |
|
| 711 |
CTX0.47-2-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 1.69μH Inductance - Connected in Series 420nH Inductance - Connected in Parallel 5 mOhm Max DC Resistance (DCR) - Parallel 6.5A Nonstandard |
|
| 712 |
P0396NL |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 14μH Inductance - Connected in Series 3.5μH Inductance - Connected in Parallel 6.54 mOhm DC Resistance (DCR) - Parallel 11.2A Nonstandard |
|
| 713 |
P0401NL |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 109.8μH Inductance - Connected in Series 27.4μH Inductance - Connected in Parallel 38.15 mOhm DC Resistance (DCR) - Parallel 4.4A Nonstandard |
|
| 714 |

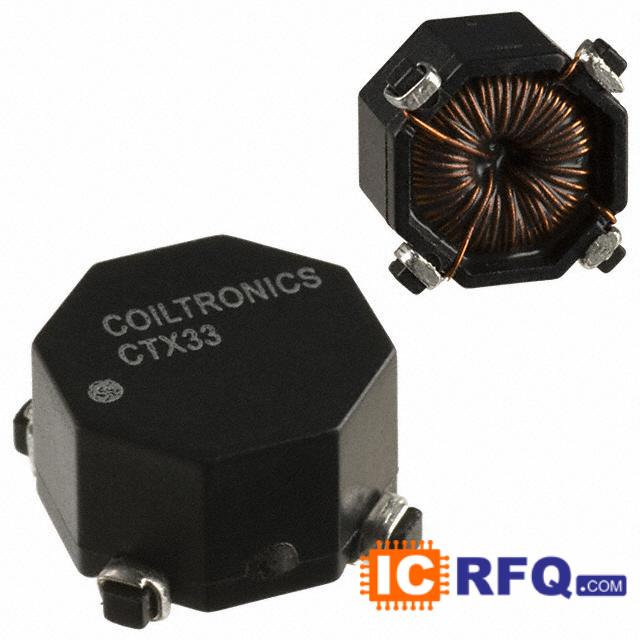

CTX33-1-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 129.6μH Inductance - Connected in Series 32.4μH Inductance - Connected in Parallel 293 mOhm Max DC Resistance (DCR) - Parallel 720mA Nonstandard |
|
| 715 |
CTX300-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 1.21mH Inductance - Connected in Series 302.5μH Inductance - Connected in Parallel 1.431 Ohm Max DC Resistance (DCR) - Parallel 220mA Nonstandard |
|
| 716 |
CTX25-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 102.4μH Inductance - Connected in Series 25.6μH Inductance - Connected in Parallel 167 mOhm Max DC Resistance (DCR) - Parallel 740mA Nonstandard |
|
| 717 |
CTX200-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 810μH Inductance - Connected in Series 202.5μH Inductance - Connected in Parallel 1.142 Ohm Max DC Resistance (DCR) - Parallel 370mA Nonstandard |
|
| 718 |
PM600-10-RC |
|
Bourns Inc. |
Unshielded 6 Coil Inductor Array 136.8μH Inductance - Connected in Series 3.8μH Inductance - Connected in Parallel 23 mOhm DC Resistance (DCR) - Parallel 4.26A Nonstandard |
|
| 719 |
PM600-04-RC |
|
Bourns Inc. |
Unshielded 6 Coil Inductor Array 439.2μH Inductance - Connected in Series 12.2μH Inductance - Connected in Parallel 23 mOhm DC Resistance (DCR) - Parallel 4.26A Nonstandard |
|
| 720 |
PM600-03-RC |
|
Bourns Inc. |
Unshielded 6 Coil Inductor Array 986.4μH Inductance - Connected in Series 27.4μH Inductance - Connected in Parallel 54 mOhm DC Resistance (DCR) - Parallel 2.76A Nonstandard |
|
| 721 |
P0179NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 88.2μH Inductance - Connected in Series 22.1μH Inductance - Connected in Parallel 66.3 mOhm Max DC Resistance (DCR) - Parallel 2.6A Nonstandard |
|
| 722 |
P0174NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 8.75μH Inductance - Connected in Series 2.2μH Inductance - Connected in Parallel 7.6 mOhm Max DC Resistance (DCR) - Parallel 8.3A Nonstandard |
|
| 723 |
P0180NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 131μH Inductance - Connected in Series 32.8μH Inductance - Connected in Parallel 106 mOhm Max DC Resistance (DCR) - Parallel 2.2A Nonstandard |
|
| 724 |
CTX5-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 19.6μH Inductance - Connected in Series 4.9μH Inductance - Connected in Parallel 30 mOhm Max DC Resistance (DCR) - Parallel 2.3A Nonstandard |
|
| 725 |
CTX8-1-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 32.4μH Inductance - Connected in Series 8.1μH Inductance - Connected in Parallel 39 mOhm Max DC Resistance (DCR) - Parallel 2A Nonstandard |
|
| 726 |
CTX2-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 8.1μH Inductance - Connected in Series 2.03μH Inductance - Connected in Parallel 10 mOhm Max DC Resistance (DCR) - Parallel 4.1A Nonstandard |
|
| 727 |
CTX1-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 3.6μH Inductance - Connected in Series 900nH Inductance - Connected in Parallel 7 mOhm Max DC Resistance (DCR) - Parallel 4.2A Nonstandard |
|
| 728 |
CTX0.68-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 2.5μH Inductance - Connected in Series 630nH Inductance - Connected in Parallel 6 mOhm Max DC Resistance (DCR) - Parallel 4.5A Nonstandard |
|
| 729 |
CTX0.47-1-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 1.6μH Inductance - Connected in Series 400nH Inductance - Connected in Parallel 5 mOhm Max DC Resistance (DCR) - Parallel 5.5A Nonstandard |
|
| 730 |

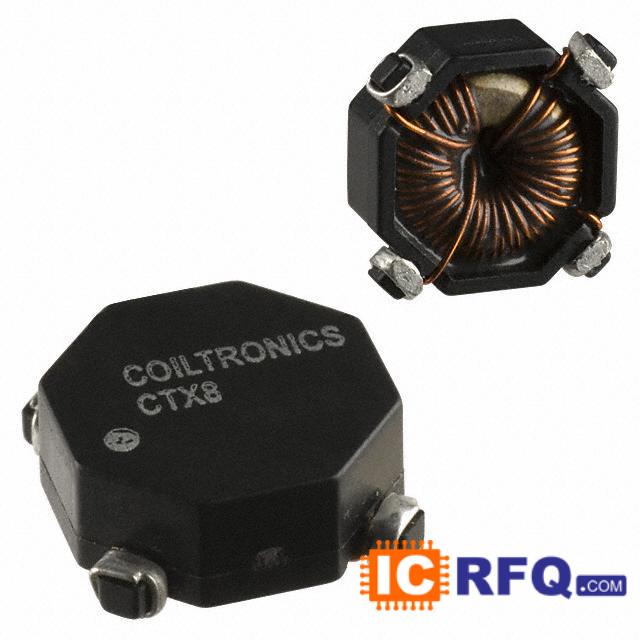

CTX8-3A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 33.77μH Inductance - Connected in Series 8.43μH Inductance - Connected in Parallel 23 mOhm Max DC Resistance (DCR) - Parallel 4.23A Nonstandard |
|
| 731 |
CTX5-3A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 20.81μH Inductance - Connected in Series 5.2μH Inductance - Connected in Parallel 15 mOhm Max DC Resistance (DCR) - Parallel 5.24A Nonstandard |
|
| 732 |
CTX2-3A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 8.43μH Inductance - Connected in Series 2.11μH Inductance - Connected in Parallel 7.9 mOhm Max DC Resistance (DCR) - Parallel 7.26A Nonstandard |
|
| 733 |
CTX1-3A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 4.2μH Inductance - Connected in Series 1.08μH Inductance - Connected in Parallel 5.9 mOhm Max DC Resistance (DCR) - Parallel 8.38A Nonstandard |
|
| 734 |
CTX150-1A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 589.6μH Inductance - Connected in Series 147.4μH Inductance - Connected in Parallel 832 mOhm Max DC Resistance (DCR) - Parallel 670mA Nonstandard |
|
| 735 |
CTX100-1A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 397.8μH Inductance - Connected in Series 99.45μH Inductance - Connected in Parallel 686 mOhm Max DC Resistance (DCR) - Parallel 740mA Nonstandard |
|
| 736 |
CTX50-2A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 197.5μH Inductance - Connected in Series 49.38μH Inductance - Connected in Parallel 240 mOhm Max DC Resistance (DCR) - Parallel 1.28A Nonstandard |
|
| 737 |
CTX300-2A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 1.215mH Inductance - Connected in Series 303.7μH Inductance - Connected in Parallel 1.174 Ohm Max DC Resistance (DCR) - Parallel 580mA Nonstandard |
|
| 738 |
CTX25-2A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 102.38μH Inductance - Connected in Series 25.6μH Inductance - Connected in Parallel 111 mOhm Max DC Resistance (DCR) - Parallel 1.89A Nonstandard |
|
| 739 |

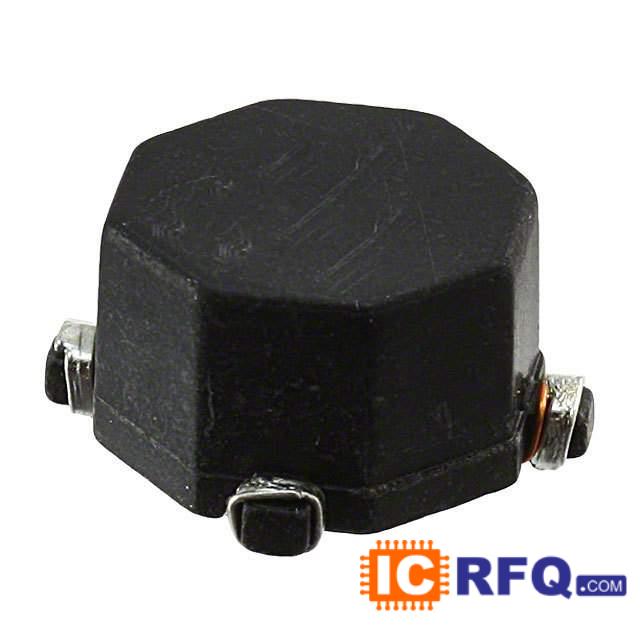

CTX200-2A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 790μH Inductance - Connected in Series 197.5μH Inductance - Connected in Parallel 950 mOhm Max DC Resistance (DCR) - Parallel 640mA Nonstandard |
|
| 740 |
CTX150-2A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 611.8μH Inductance - Connected in Series 152.9μH Inductance - Connected in Parallel 842 mOhm Max DC Resistance (DCR) - Parallel 680mA Nonstandard |
|
| 741 |
CTX100-2A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 409.5μH Inductance - Connected in Series 102.38μH Inductance - Connected in Parallel 695 mOhm Max DC Resistance (DCR) - Parallel 750mA Nonstandard |
|
| 742 |
P0177NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 41.7μH Inductance - Connected in Series 10.4μH Inductance - Connected in Parallel 29.8 mOhm Max DC Resistance (DCR) - Parallel 3.8A Nonstandard |
|
| 743 |
P0182NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 270.2μH Inductance - Connected in Series 67.5μH Inductance - Connected in Parallel 224 mOhm Max DC Resistance (DCR) - Parallel 1.5A Nonstandard |
|
| 744 |
P0181NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 190.3μH Inductance - Connected in Series 47.6μH Inductance - Connected in Parallel 151 mOhm Max DC Resistance (DCR) - Parallel 1.8A Nonstandard |
|
| 745 |
PA2493HL |
|
Pulse Electronics Corporation |
Unshielded 3 Coil Inductor Array Nonstandard |
|
| 746 |

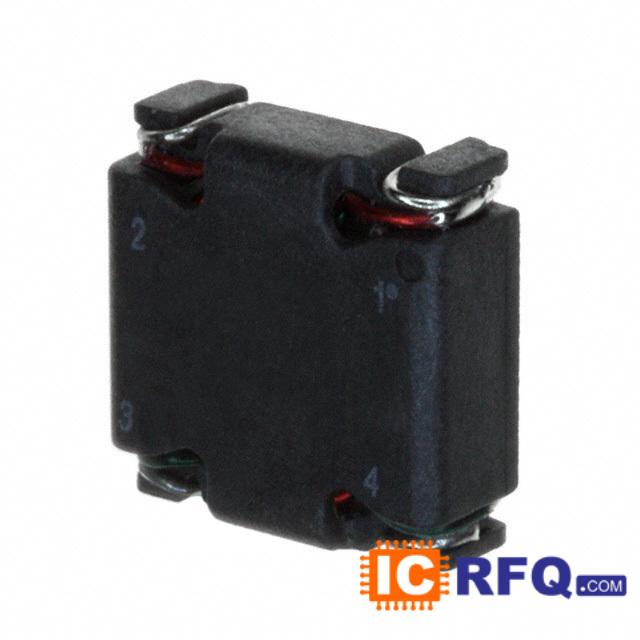

P0183NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 364μH Inductance - Connected in Series 91μH Inductance - Connected in Parallel 324 mOhm Max DC Resistance (DCR) - Parallel 1.2A Nonstandard |
|
| 747 |
P0178NLT |
 |
Pulse Electronics Corporation |
Unshielded 2 Coil Inductor Array 62.8μH Inductance - Connected in Series 15.7μH Inductance - Connected in Parallel 45.3 mOhm Max DC Resistance (DCR) - Parallel 3.1A Nonstandard |
|
| 748 |
CTX15-1A-R |
 |
Eaton |
Unshielded 2 Coil Inductor Array 60.91μH Inductance - Connected in Series 15.23μH Inductance - Connected in Parallel 87 mOhm Max DC Resistance (DCR) - Parallel 2.07A Nonstandard |
|
| 749 |
CTX68-1A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 271.5μH Inductance - Connected in Series 67.87μH Inductance - Connected in Parallel 437 mOhm Max DC Resistance (DCR) - Parallel 920mA Nonstandard |
|
| 750 |
CTX50-1A-R |
|
Eaton |
Unshielded 2 Coil Inductor Array 204.7μH Inductance - Connected in Series 51.18μH Inductance - Connected in Parallel 381 mOhm Max DC Resistance (DCR) - Parallel 990mA Nonstandard |
|
