# Arrays, Signal Transformers - Inductors, Coils, Chokes - Electronic Components

No. | Part Number | Image | Manufacturer | Description | Action |
---|---|---|---|---|---|

601 | 4448R-116L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 60μH Inductance - Connected in Series 15μH Inductance - Connected in Parallel 24 mOhm Max DC Resistance (DCR) - Parallel 3A Nonstandard | ||

602 | 4448R-114L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 40μH Inductance - Connected in Series 10μH Inductance - Connected in Parallel 20 mOhm Max DC Resistance (DCR) - Parallel 3.4A Nonstandard | ||

603 | 4448R-112M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 32μH Inductance - Connected in Series 8μH Inductance - Connected in Parallel 19 mOhm Max DC Resistance (DCR) - Parallel 3.5A Nonstandard | ||

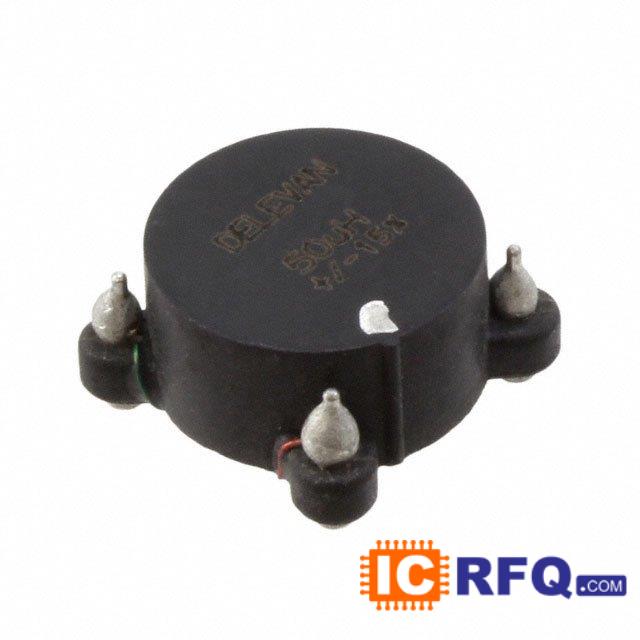

604 | 4448R-110M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 20μH Inductance - Connected in Series 5μH Inductance - Connected in Parallel 14 mOhm Max DC Resistance (DCR) - Parallel 4.4A Nonstandard | ||

605 | 4448R-10M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 20μH Inductance - Connected in Series 5μH Inductance - Connected in Parallel 27 mOhm Max DC Resistance (DCR) - Parallel 3.3A Nonstandard | ||

606 | 4448R-108M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 8μH Inductance - Connected in Series 2μH Inductance - Connected in Parallel 7 mOhm Max DC Resistance (DCR) - Parallel 5.9A Nonstandard | ||

607 | 4448R-106M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 4μH Inductance - Connected in Series 1μH Inductance - Connected in Parallel 6 mOhm Max DC Resistance (DCR) - Parallel 6.5A Nonstandard | ||

608 | 4448R-104M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 3μH Inductance - Connected in Series 680nH Inductance - Connected in Parallel 5 mOhm Max DC Resistance (DCR) - Parallel 7A Nonstandard | ||

609 | 4448R-102M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 2μH Inductance - Connected in Series 470nH Inductance - Connected in Parallel 4 mOhm Max DC Resistance (DCR) - Parallel 7.9A Nonstandard | ||

610 | 4448R-08M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 8μH Inductance - Connected in Series 2μH Inductance - Connected in Parallel 14 mOhm Max DC Resistance (DCR) - Parallel 4.6A Nonstandard | ||

611 | 4448R-06M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 4μH Inductance - Connected in Series 1μH Inductance - Connected in Parallel 9 mOhm Max DC Resistance (DCR) - Parallel 5.9A Nonstandard | ||

612 | 4448-28L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 400μH Inductance - Connected in Series 100μH Inductance - Connected in Parallel 565 mOhm Max DC Resistance (DCR) - Parallel 720mA Nonstandard | ||

613 | 4448-26L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 272μH Inductance - Connected in Series 68μH Inductance - Connected in Parallel 238 mOhm Max DC Resistance (DCR) - Parallel 1.1A Nonstandard | ||

614 | 4448-24L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 200μH Inductance - Connected in Series 50μH Inductance - Connected in Parallel 202 mOhm Max DC Resistance (DCR) - Parallel 1.2A Nonstandard | ||

615 | 4448-22L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 132μH Inductance - Connected in Series 33μH Inductance - Connected in Parallel 166 mOhm Max DC Resistance (DCR) - Parallel 1.3A Nonstandard | ||

616 | 4448-20L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 100μH Inductance - Connected in Series 25μH Inductance - Connected in Parallel 116 mOhm Max DC Resistance (DCR) - Parallel 1.6A Nonstandard | ||

617 | 4448-18L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 80μH Inductance - Connected in Series 20μH Inductance - Connected in Parallel 85 mOhm Max DC Resistance (DCR) - Parallel 1.9A Nonstandard | ||

618 | 4448-16L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 60μH Inductance - Connected in Series 15μH Inductance - Connected in Parallel 57 mOhm Max DC Resistance (DCR) - Parallel 2.3A Nonstandard | ||

619 | 4448-14L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 40μH Inductance - Connected in Series 10μH Inductance - Connected in Parallel 47 mOhm Max DC Resistance (DCR) - Parallel 2.5A Nonstandard | ||

620 | 4448-12M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 32μH Inductance - Connected in Series 8μH Inductance - Connected in Parallel 33 mOhm Max DC Resistance (DCR) - Parallel 3A Nonstandard | ||

621 | 4448-10M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 20μH Inductance - Connected in Series 5μH Inductance - Connected in Parallel 27 mOhm Max DC Resistance (DCR) - Parallel 3.3A Nonstandard | ||

622 | 4448-08M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 8μH Inductance - Connected in Series 2μH Inductance - Connected in Parallel 14 mOhm Max DC Resistance (DCR) - Parallel 4.6A Nonstandard | ||

623 | 4448R-12M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 32μH Inductance - Connected in Series 8μH Inductance - Connected in Parallel 33 mOhm Max DC Resistance (DCR) - Parallel 3A Nonstandard | ||

624 | 4448R-128L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 400μH Inductance - Connected in Series 100μH Inductance - Connected in Parallel 303 mOhm Max DC Resistance (DCR) - Parallel 920mA Nonstandard | ||

625 | 4448R-126L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 272μH Inductance - Connected in Series 68μH Inductance - Connected in Parallel 158 mOhm Max DC Resistance (DCR) - Parallel 1.2A Nonstandard | ||

626 | 4448R-122L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 132μH Inductance - Connected in Series 33μH Inductance - Connected in Parallel 72 mOhm Max DC Resistance (DCR) - Parallel 1.8A Nonstandard | ||

627 | CTX8-4-R | Eaton | Unshielded 2 Coil Inductor Array 33.12μH Inductance - Connected in Series 8.28μH Inductance - Connected in Parallel 18 mOhm Max DC Resistance (DCR) - Parallel 3.5A Nonstandard | ||

628 | 4448-122L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 132μH Inductance - Connected in Series 33μH Inductance - Connected in Parallel 72 mOhm Max DC Resistance (DCR) - Parallel 1.8A Nonstandard | ||

629 | 4448-120L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 100μH Inductance - Connected in Series 25μH Inductance - Connected in Parallel 64 mOhm Max DC Resistance (DCR) - Parallel 2A Nonstandard | ||

630 | 4448-118L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 80μH Inductance - Connected in Series 20μH Inductance - Connected in Parallel 55 mOhm Max DC Resistance (DCR) - Parallel 2.1A Nonstandard | ||

631 | 4448-116L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 60μH Inductance - Connected in Series 15μH Inductance - Connected in Parallel 24 mOhm Max DC Resistance (DCR) - Parallel 3A Nonstandard | ||

632 | 4448-114L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 40μH Inductance - Connected in Series 10μH Inductance - Connected in Parallel 20 mOhm Max DC Resistance (DCR) - Parallel 3.4A Nonstandard | ||

633 | 4448-112M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 32μH Inductance - Connected in Series 8μH Inductance - Connected in Parallel 19 mOhm Max DC Resistance (DCR) - Parallel 3.5A Nonstandard | ||

634 | 4448-110M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 20μH Inductance - Connected in Series 5μH Inductance - Connected in Parallel 14 mOhm Max DC Resistance (DCR) - Parallel 4.4A Nonstandard | ||

635 | 4448-108M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 8μH Inductance - Connected in Series 2μH Inductance - Connected in Parallel 7 mOhm Max DC Resistance (DCR) - Parallel 5.9A Nonstandard | ||

636 | 4448-106M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 4μH Inductance - Connected in Series 1μH Inductance - Connected in Parallel 6 mOhm Max DC Resistance (DCR) - Parallel 6.5A Nonstandard | ||

637 | 4448-104M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 3μH Inductance - Connected in Series 680nH Inductance - Connected in Parallel 5 mOhm Max DC Resistance (DCR) - Parallel 7A Nonstandard | ||

638 | 4448-102M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 2μH Inductance - Connected in Series 470nH Inductance - Connected in Parallel 4 mOhm Max DC Resistance (DCR) - Parallel 7.9A Nonstandard | ||

639 | 4448-34L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300μH Inductance - Connected in Parallel 1.003 Ohm Max DC Resistance (DCR) - Parallel 540mA Nonstandard | ||

640 | 4448-32L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 800μH Inductance - Connected in Series 200μH Inductance - Connected in Parallel 810 mOhm Max DC Resistance (DCR) - Parallel 600mA Nonstandard | ||

641 | 4448-30L | API Delevan Inc. | Unshielded 2 Coil Inductor Array 600μH Inductance - Connected in Series 150μH Inductance - Connected in Parallel 696 mOhm Max DC Resistance (DCR) - Parallel 640mA Nonstandard | ||

642 | PA3144HL | Pulse Electronics Corporation | Shielded 4 Coil Inductor Array 8-SMD, No Lead | ||

643 | PM620-12-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 136.8μH Inductance - Connected in Series 3.8μH Inductance - Connected in Parallel 11 mOhm DC Resistance (DCR) - Parallel 9.24A 12-SMD | ||

644 | PM620-11-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 284.4μH Inductance - Connected in Series 7.9μH Inductance - Connected in Parallel 16 mOhm DC Resistance (DCR) - Parallel 7.68A 12-SMD | ||

645 | PM620-10-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 162μH Inductance - Connected in Series 4.5μH Inductance - Connected in Parallel 11 mOhm DC Resistance (DCR) - Parallel 9.24A 12-SMD | ||

646 | PM620-08-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 244.8μH Inductance - Connected in Series 6.8μH Inductance - Connected in Parallel 11 mOhm DC Resistance (DCR) - Parallel 9.24A 12-SMD | ||

647 | PM620-07-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 511.2μH Inductance - Connected in Series 14.2μH Inductance - Connected in Parallel 16 mOhm DC Resistance (DCR) - Parallel 7.68A 12-SMD | ||

648 | PM620-06-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 403.2μH Inductance - Connected in Series 11.2μH Inductance - Connected in Parallel 11 mOhm DC Resistance (DCR) - Parallel 9.24A 12-SMD | ||

649 | PM620-04-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 2.27mH Inductance - Connected in Series 63.2μH Inductance - Connected in Parallel 11 mOhm DC Resistance (DCR) - Parallel 9.24A 12-SMD | ||

650 | PM620-03-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 4.74mH Inductance - Connected in Series 131.8μH Inductance - Connected in Parallel 16 mOhm DC Resistance (DCR) - Parallel 7.68A 12-SMD |
