# Arrays, Signal Transformers - Inductors, Coils, Chokes - Electronic Components

No. | Part Number | Image | Manufacturer | Description | Action |
---|---|---|---|---|---|

651 | PM620-02-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 2.77mH Inductance - Connected in Series 77μH Inductance - Connected in Parallel 11 mOhm DC Resistance (DCR) - Parallel 9.24A 12-SMD | ||

652 | PM620-01-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 5.78mH Inductance - Connected in Series 160.6μH Inductance - Connected in Parallel 16 mOhm DC Resistance (DCR) - Parallel 7.68A 12-SMD | ||

653 | CTX68-4-R | Eaton | Unshielded 2 Coil Inductor Array 268.32μH Inductance - Connected in Series 67.08μH Inductance - Connected in Parallel 157 mOhm Max DC Resistance (DCR) - Parallel 1.2A Nonstandard | ||

654 | LCP5-2.04-47 | Talema Group LLC | Unshielded 2 Coil Inductor Array 188μH Inductance - Connected in Series 47μH Inductance - Connected in Parallel 72 mOhm DC Resistance (DCR) - Parallel 2.04A Nonstandard | ||

655 | CTX15-3-R | Eaton | Unshielded 2 Coil Inductor Array 60μH Inductance - Connected in Series 15μH Inductance - Connected in Parallel 43 mOhm Max DC Resistance (DCR) - Parallel 2A Nonstandard | ||

656 | CTX150-3-R | Eaton | Unshielded 2 Coil Inductor Array 599.14μH Inductance - Connected in Series 149.78μH Inductance - Connected in Parallel 430 mOhm Max DC Resistance (DCR) - Parallel 380mA Nonstandard | ||

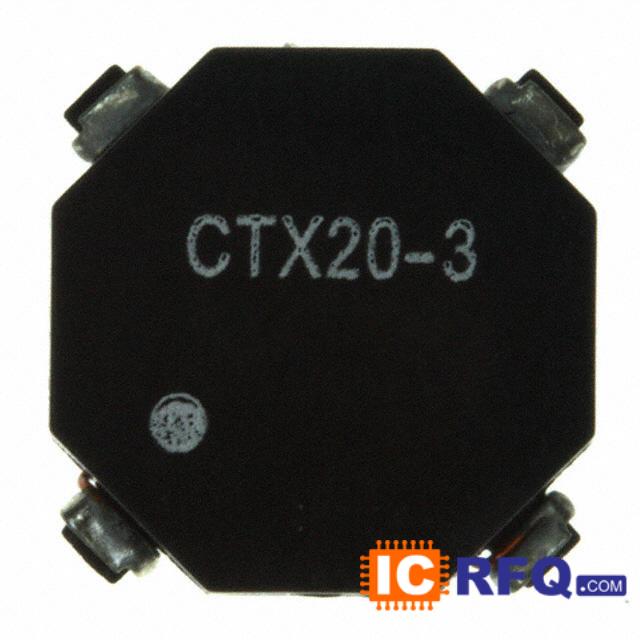

657 | CTX20-3-R | Eaton | Unshielded 2 Coil Inductor Array 80.74μH Inductance - Connected in Series 20.18μH Inductance - Connected in Parallel 78 mOhm Max DC Resistance (DCR) - Parallel 1.5A Nonstandard | ||

658 | 4448-06M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 4μH Inductance - Connected in Series 1μH Inductance - Connected in Parallel 9 mOhm Max DC Resistance (DCR) - Parallel 5.9A Nonstandard | ||

659 | 4448-04M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 3μH Inductance - Connected in Series 680nH Inductance - Connected in Parallel 6 mOhm Max DC Resistance (DCR) - Parallel 7.2A Nonstandard | ||

660 | 4448-02M | API Delevan Inc. | Unshielded 2 Coil Inductor Array 2μH Inductance - Connected in Series 470nH Inductance - Connected in Parallel 5 mOhm Max DC Resistance (DCR) - Parallel 7.9A Nonstandard | ||

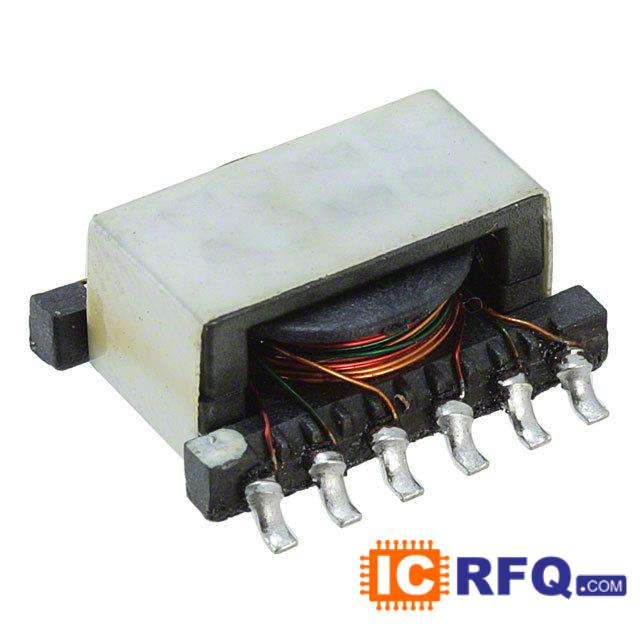

661 | VPH1-0059-R | Eaton | Unshielded 6 Coil Inductor Array 6-SMD | ||

662 | LCP5-3.00-22 | Amgis, LLC | Unshielded 2 Coil Inductor Array 88μH Inductance - Connected in Series 22μH Inductance - Connected in Parallel 38 mOhm DC Resistance (DCR) - Parallel 3A Nonstandard | ||

663 | P0599NL | Pulse Electronics Corporation | Unshielded 2 Coil Inductor Array 8.4μH Inductance - Connected in Series 2.1μH Inductance - Connected in Parallel 1.3 mOhm Max DC Resistance (DCR) - Parallel 38A Nonstandard | ||

664 | P0598NL | Pulse Electronics Corporation | Unshielded 2 Coil Inductor Array 15.6μH Inductance - Connected in Series 3.9μH Inductance - Connected in Parallel 1.6 mOhm Max DC Resistance (DCR) - Parallel 34A Nonstandard | ||

665 | CTX0.68-4-R | Eaton | Unshielded 2 Coil Inductor Array 3.14μH Inductance - Connected in Series 780nH Inductance - Connected in Parallel 5 mOhm Max DC Resistance (DCR) - Parallel 6A Nonstandard | ||

666 | CTX0.47-4-R | Eaton | Unshielded 2 Coil Inductor Array 1.76μH Inductance - Connected in Series 440nH Inductance - Connected in Parallel 4 mOhm Max DC Resistance (DCR) - Parallel 7A Nonstandard | ||

667 | PM610-10-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 115.2μH Inductance - Connected in Series 3.2μH Inductance - Connected in Parallel 16 mOhm DC Resistance (DCR) - Parallel 6A 12-SMD | ||

668 | PM610-06-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 205.2μH Inductance - Connected in Series 5.7μH Inductance - Connected in Parallel 16 mOhm DC Resistance (DCR) - Parallel 6A 12-SMD | ||

669 | PM610-05-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 417.6μH Inductance - Connected in Series 11.6μH Inductance - Connected in Parallel 34 mOhm DC Resistance (DCR) - Parallel 4.08A 12-SMD | ||

670 | PM610-02-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 2.82mH Inductance - Connected in Series 78.4μH Inductance - Connected in Parallel 16 mOhm DC Resistance (DCR) - Parallel 6A 12-SMD | ||

671 | PM610-01-RC | Bourns Inc. | Unshielded 6 Coil Inductor Array 5.76mH Inductance - Connected in Series 160μH Inductance - Connected in Parallel 34 mOhm DC Resistance (DCR) - Parallel 4.08A 12-SMD | ||

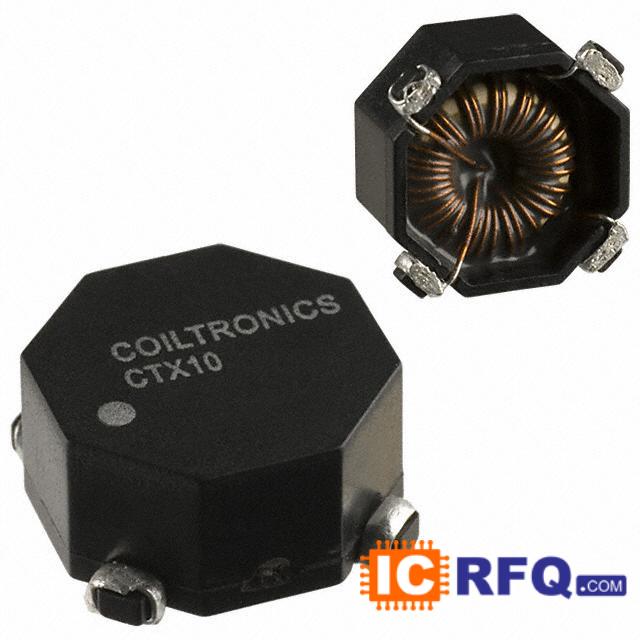

672 | CTX10-3-R | Eaton | Unshielded 2 Coil Inductor Array 38.4μH Inductance - Connected in Series 9.6μH Inductance - Connected in Parallel 28 mOhm Max DC Resistance (DCR) - Parallel 2.7A Nonstandard | ||

673 | CTX100-3-R | Eaton | Unshielded 2 Coil Inductor Array 405.6μH Inductance - Connected in Series 101.4μH Inductance - Connected in Parallel 345 mOhm Max DC Resistance (DCR) - Parallel 700mA Nonstandard | ||

674 | CTX68-3-R | Eaton | Unshielded 2 Coil Inductor Array 269.66μH Inductance - Connected in Series 67.42μH Inductance - Connected in Parallel 277 mOhm Max DC Resistance (DCR) - Parallel 800mA Nonstandard | ||

675 | CTX50-3-R | Eaton | Unshielded 2 Coil Inductor Array 203.14μH Inductance - Connected in Series 50.78μH Inductance - Connected in Parallel 239 mOhm Max DC Resistance (DCR) - Parallel 940mA Nonstandard | ||

676 | CTX300-3-R | Eaton | Unshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 301.06μH Inductance - Connected in Parallel 951 mOhm Max DC Resistance (DCR) - Parallel 400mA Nonstandard | ||

677 | CTX25-3-R | Eaton | Unshielded 2 Coil Inductor Array 98.3μH Inductance - Connected in Series 24.58μH Inductance - Connected in Parallel 86 mOhm Max DC Resistance (DCR) - Parallel 980mA Nonstandard | ||

678 | CTX200-3-R | Eaton | Unshielded 2 Coil Inductor Array 794.98μH Inductance - Connected in Series 198.74μH Inductance - Connected in Parallel 619 mOhm Max DC Resistance (DCR) - Parallel 390mA Nonstandard | ||

679 | CTX2-4A-R | Eaton | Unshielded 2 Coil Inductor Array 8.7μH Inductance - Connected in Series 2.18μH Inductance - Connected in Parallel 6.3 mOhm Max DC Resistance (DCR) - Parallel 8.38A Nonstandard | ||

680 | CTX1-4A-R | Eaton | Unshielded 2 Coil Inductor Array 5.57μH Inductance - Connected in Series 1.39μH Inductance - Connected in Parallel 5.2 mOhm Max DC Resistance (DCR) - Parallel 9.23A Nonstandard | ||

681 | CTX0.68-4A-R | Eaton | Unshielded 2 Coil Inductor Array 2.98μH Inductance - Connected in Series 744nH Inductance - Connected in Parallel 4 mOhm Max DC Resistance (DCR) - Parallel 10.6A Nonstandard | ||

682 | CTX0.33-4A-R | Eaton | Unshielded 2 Coil Inductor Array 1.25μH Inductance - Connected in Series 313nH Inductance - Connected in Parallel 3 mOhm Max DC Resistance (DCR) - Parallel 12.2A Nonstandard | ||

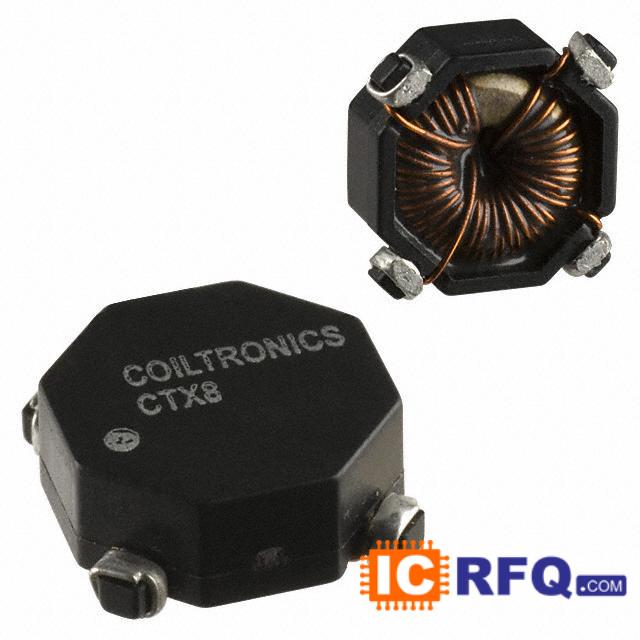

683 | CTX8-3-R | Eaton | Unshielded 2 Coil Inductor Array 31.1μH Inductance - Connected in Series 7.78μH Inductance - Connected in Parallel 25 mOhm Max DC Resistance (DCR) - Parallel 2.8A Nonstandard | ||

684 | CTX5-3-R | Eaton | Unshielded 2 Coil Inductor Array 18.82μH Inductance - Connected in Series 4.7μH Inductance - Connected in Parallel 19 mOhm Max DC Resistance (DCR) - Parallel 3A Nonstandard | ||

685 | CTX2-3-R | Eaton | Unshielded 2 Coil Inductor Array 7.78μH Inductance - Connected in Series 1.94μH Inductance - Connected in Parallel 10 mOhm Max DC Resistance (DCR) - Parallel 4.7A Nonstandard | ||

686 | CTX1-3-R | Eaton | Unshielded 2 Coil Inductor Array 3.46μH Inductance - Connected in Series 860nH Inductance - Connected in Parallel 7 mOhm Max DC Resistance (DCR) - Parallel 4.8A Nonstandard | ||

687 | CTX0.68-3-R | Eaton | Unshielded 2 Coil Inductor Array 2.4μH Inductance - Connected in Series 600nH Inductance - Connected in Parallel 6 mOhm Max DC Resistance (DCR) - Parallel 5A Nonstandard | ||

688 | CTX0.47-3-R | Eaton | Unshielded 2 Coil Inductor Array 1.54μH Inductance - Connected in Series 380nH Inductance - Connected in Parallel 5 mOhm Max DC Resistance (DCR) - Parallel 6A Nonstandard | ||

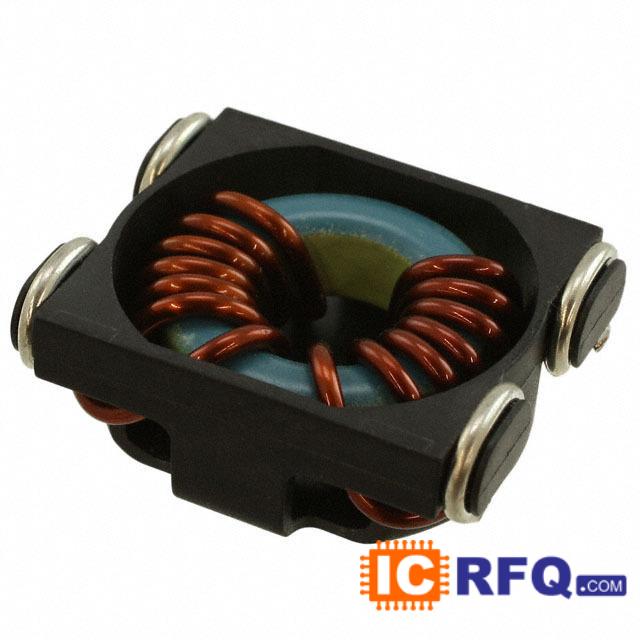

689 | P0596NLT | Pulse Electronics Corporation | Unshielded 2 Coil Inductor Array 32μH Inductance - Connected in Series 8μH Inductance - Connected in Parallel 3.5 mOhm Max DC Resistance (DCR) - Parallel 24A Nonstandard | ||

690 | CTX2-4-R | Eaton | Unshielded 2 Coil Inductor Array 7.06μH Inductance - Connected in Series 1.76μH Inductance - Connected in Parallel 7 mOhm Max DC Resistance (DCR) - Parallel 4.9A Nonstandard | ||

691 | CTX1-4-R | Eaton | Unshielded 2 Coil Inductor Array 4.9μH Inductance - Connected in Series 1.23μH Inductance - Connected in Parallel 6 mOhm Max DC Resistance (DCR) - Parallel 5A Nonstandard | ||

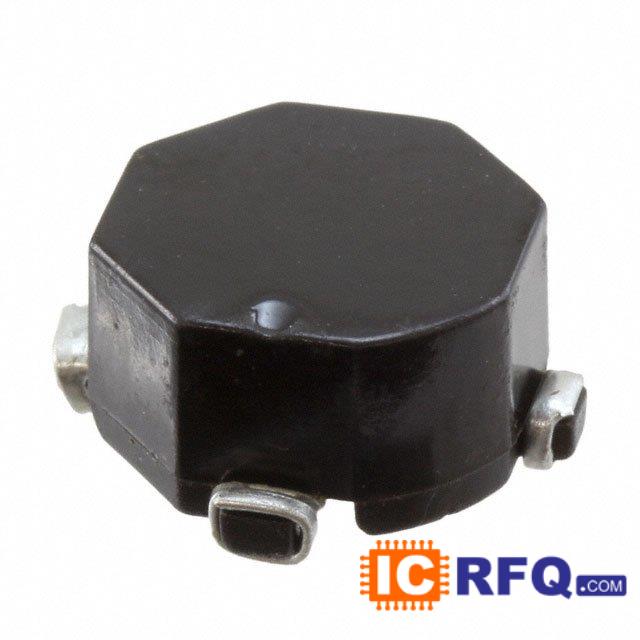

692 | SCX147-0R47 | Signal Transformer | Unshielded 2 Coil Inductor Array 1.76μH Inductance - Connected in Series 470nH Inductance - Connected in Parallel 4 mOhm Max DC Resistance (DCR) - Parallel 7A Nonstandard | ||

693 | SCX147-100 | Signal Transformer | Unshielded 2 Coil Inductor Array 38.42μH Inductance - Connected in Series 10μH Inductance - Connected in Parallel 20 mOhm Max DC Resistance (DCR) - Parallel 3.4A Nonstandard | ||

694 | SCX147-330 | Signal Transformer | Unshielded 2 Coil Inductor Array 132.5μH Inductance - Connected in Series 33μH Inductance - Connected in Parallel 72 mOhm Max DC Resistance (DCR) - Parallel 1.8A Nonstandard | ||

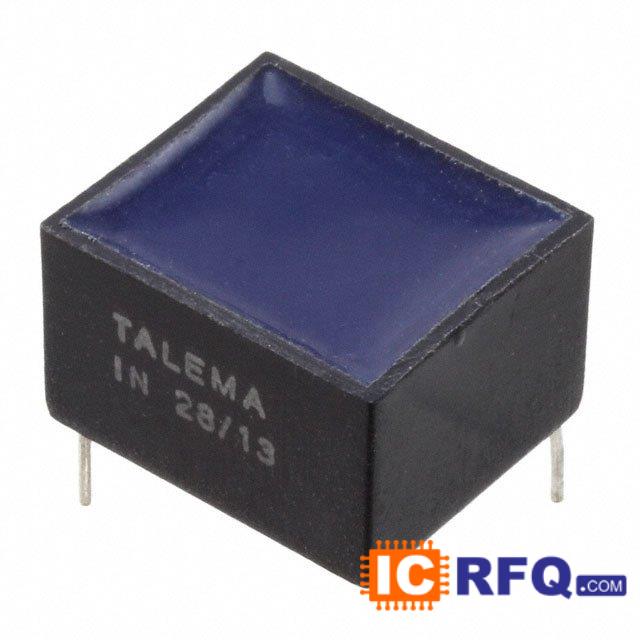

695 | SDF-0.63-500 | Talema Group LLC | Unshielded 2 Coil Inductor Array Nonstandard | ||

696 | CTX25-2-R | Eaton | Unshielded 2 Coil Inductor Array 99.45μH Inductance - Connected in Series 24.86μH Inductance - Connected in Parallel 117 mOhm Max DC Resistance (DCR) - Parallel 1A Nonstandard | ||

697 | CTX200-2-R | Eaton | Unshielded 2 Coil Inductor Array 794.3μH Inductance - Connected in Series 198.58μH Inductance - Connected in Parallel 796 mOhm Max DC Resistance (DCR) - Parallel 390mA Nonstandard | ||

698 | CTX150-2-R | Eaton | Unshielded 2 Coil Inductor Array 589.57μH Inductance - Connected in Series 147.39μH Inductance - Connected in Parallel 560 mOhm Max DC Resistance (DCR) - Parallel 430mA Nonstandard | ||

699 | CTX100-4A-R | Eaton | Unshielded 2 Coil Inductor Array 402.3μH Inductance - Connected in Series 100.57μH Inductance - Connected in Parallel 235 mOhm Max DC Resistance (DCR) - Parallel 1.37A Nonstandard | ||

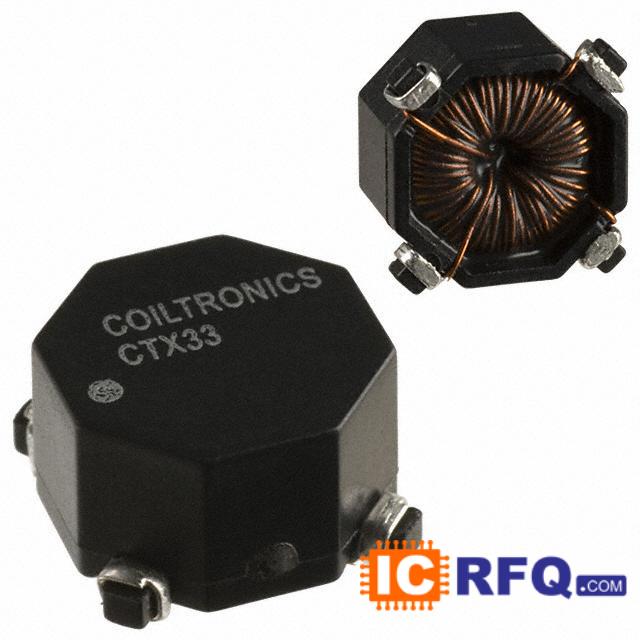

700 | CTX33-4A-R | Eaton | Unshielded 2 Coil Inductor Array 139.2μH Inductance - Connected in Series 34.8μH Inductance - Connected in Parallel 71 mOhm Max DC Resistance (DCR) - Parallel 2.49A Nonstandard |
