# Arrays, Signal Transformers - Inductors, Coils, Chokes - Electronic Components

No. | Part Number | Image | Manufacturer | Description | Action |
---|---|---|---|---|---|

151 | CTX33-4-R | Eaton | Unshielded 2 Coil Inductor Array 132.5μH Inductance - Connected in Series 33.12μH Inductance - Connected in Parallel 72 mOhm Max DC Resistance (DCR) - Parallel 1.8A Nonstandard | ||

152 | DRQ74-330-R | Eaton | Shielded 2 Coil Inductor Array 132μH Inductance - Connected in Series 33.01μH Inductance - Connected in Parallel 143 mOhm DC Resistance (DCR) - Parallel 1.41A Nonstandard | ||

153 | IHCL4040DZER220M5A | Vishay Dale | Shielded 2 Coil Inductor Array Nonstandard | ||

154 | IHCL4040DZER4R7M5A | Vishay Dale | Shielded 2 Coil Inductor Array Nonstandard | ||

155 | DRQ127-471-R | Eaton | Shielded 2 Coil Inductor Array 1.868mH Inductance - Connected in Series 467.1μH Inductance - Connected in Parallel 861 mOhm DC Resistance (DCR) - Parallel 850mA Nonstandard | ||

156 | DRQ125-221-R | Eaton | Shielded 2 Coil Inductor Array 867.2μH Inductance - Connected in Series 216.8μH Inductance - Connected in Parallel 384 mOhm DC Resistance (DCR) - Parallel 1.19A Nonstandard | ||

157 | DRQ125-150-R | Eaton | Shielded 2 Coil Inductor Array 61.4μH Inductance - Connected in Series 15.35μH Inductance - Connected in Parallel 29.8 mOhm DC Resistance (DCR) - Parallel 4.27A Nonstandard | ||

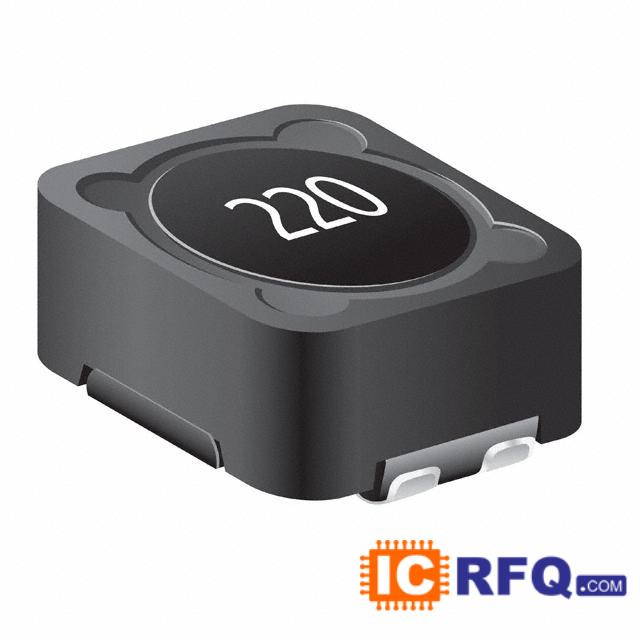

158 | SRF1260-221M | Bourns Inc. | Shielded 2 Coil Inductor Array 880μH Inductance - Connected in Series 220μH Inductance - Connected in Parallel 354 mOhm Max DC Resistance (DCR) - Parallel 1.19A Nonstandard | ||

159 | SRF1260-8R2Y | Bourns Inc. | Shielded 2 Coil Inductor Array 32.8μH Inductance - Connected in Series 8.2μH Inductance - Connected in Parallel 19.4 mOhm Max DC Resistance (DCR) - Parallel 5.54A Nonstandard | ||

160 | PM3602-20-RC | Bourns Inc. | Unshielded 2 Coil Inductor Array 80μH Inductance - Connected in Series 20μH Inductance - Connected in Parallel 86 mOhm Max DC Resistance (DCR) - Parallel 1.25A Nonstandard | ||

161 | PM3604-150-RC | Bourns Inc. | Unshielded 2 Coil Inductor Array 600μH Inductance - Connected in Series 150μH Inductance - Connected in Parallel 320 mOhm Max DC Resistance (DCR) - Parallel 780mA Nonstandard | ||

162 | PM3604-50-RC | Bourns Inc. | Unshielded 2 Coil Inductor Array 200μH Inductance - Connected in Series 50μH Inductance - Connected in Parallel 120 mOhm Max DC Resistance (DCR) - Parallel 1.28A Nonstandard | ||

163 | PM3604-5-RC | Bourns Inc. | Unshielded 2 Coil Inductor Array 20μH Inductance - Connected in Series 5μH Inductance - Connected in Parallel 19 mOhm Max DC Resistance (DCR) - Parallel 3.3A Nonstandard | ||

164 | PM3604-15-RC | Bourns Inc. | Unshielded 2 Coil Inductor Array 60μH Inductance - Connected in Series 15μH Inductance - Connected in Parallel 41 mOhm Max DC Resistance (DCR) - Parallel 2.2A Nonstandard | ||

165 | DRAQ127-220-R | Eaton | Shielded 2 Coil Inductor Array 88μH Inductance - Connected in Series 22μH Inductance - Connected in Parallel 47 mOhm Max DC Resistance (DCR) - Parallel 3.98A Nonstandard | ||

166 | DRQ74-102-R | Eaton | Shielded 2 Coil Inductor Array 4.036mH Inductance - Connected in Series 1.009mH Inductance - Connected in Parallel 3.89 Ohm DC Resistance (DCR) - Parallel 270mA Nonstandard | ||

167 | VPH4-0075-R | Eaton | Unshielded 6 Coil Inductor Array 12-SMD | ||

168 | VP5-0083-R | Eaton | Unshielded 6 Coil Inductor Array Nonstandard | ||

169 | DRQ73-221-R | Eaton | Shielded 2 Coil Inductor Array 893.2μH Inductance - Connected in Series 223.3μH Inductance - Connected in Parallel 1.05 Ohm DC Resistance (DCR) - Parallel 520mA Nonstandard | ||

170 | SRF1280-102M | Bourns Inc. | Shielded 2 Coil Inductor Array 4mH Inductance - Connected in Series 1mH Inductance - Connected in Parallel 1.992 Ohm Max DC Resistance (DCR) - Parallel 610mA Nonstandard | ||

171 | SRF1280-221M | Bourns Inc. | Shielded 2 Coil Inductor Array 880μH Inductance - Connected in Series 220μH Inductance - Connected in Parallel 343 mOhm Max DC Resistance (DCR) - Parallel 1.29A Nonstandard | ||

172 | SRF1280-1R0Y | Bourns Inc. | Shielded 2 Coil Inductor Array 4μH Inductance - Connected in Series 1μH Inductance - Connected in Parallel 6.7 mOhm Max DC Resistance (DCR) - Parallel 15.5A Nonstandard | ||

173 | SRF1280-330M | Bourns Inc. | Shielded 2 Coil Inductor Array 132μH Inductance - Connected in Series 33μH Inductance - Connected in Parallel 66.4 mOhm Max DC Resistance (DCR) - Parallel 3.23A Nonstandard | ||

174 | SRF1280A-220M | Bourns Inc. | Shielded 2 Coil Inductor Array 88μH Inductance - Connected in Series 22μH Inductance - Connected in Parallel 50.3 mOhm Max DC Resistance (DCR) - Parallel 4A Nonstandard | ||

175 | SRF1260-150M | Bourns Inc. | Shielded 2 Coil Inductor Array 60μH Inductance - Connected in Series 15μH Inductance - Connected in Parallel 32.9 mOhm Max DC Resistance (DCR) - Parallel 4.27A Nonstandard | ||

176 | SRF1260-3R3Y | Bourns Inc. | Shielded 2 Coil Inductor Array 13.2μH Inductance - Connected in Series 3.3μH Inductance - Connected in Parallel 10.1 mOhm Max DC Resistance (DCR) - Parallel 9.26A Nonstandard | ||

177 | SRF1260-4R7Y | Bourns Inc. | Shielded 2 Coil Inductor Array 18.8μH Inductance - Connected in Series 4.7μH Inductance - Connected in Parallel 13.7 mOhm Max DC Resistance (DCR) - Parallel 7.18A Nonstandard | ||

178 | SRF0703-820M | Bourns Inc. | Shielded 2 Coil Inductor Array 328μH Inductance - Connected in Series 82μH Inductance - Connected in Parallel 610 mOhm Max DC Resistance (DCR) - Parallel 860mA Nonstandard | ||

179 | SRF0703-680M | Bourns Inc. | Shielded 2 Coil Inductor Array 272μH Inductance - Connected in Series 68μH Inductance - Connected in Parallel 507 mOhm Max DC Resistance (DCR) - Parallel 890mA Nonstandard | ||

180 | SRF0703-1R0M | Bourns Inc. | Shielded 2 Coil Inductor Array 4μH Inductance - Connected in Series 1μH Inductance - Connected in Parallel 13.5 mOhm Max DC Resistance (DCR) - Parallel 5.25A Nonstandard | ||

181 | SRF0703-471M | Bourns Inc. | Shielded 2 Coil Inductor Array 1.88mH Inductance - Connected in Series 470μH Inductance - Connected in Parallel 2.82 Ohm Max DC Resistance (DCR) - Parallel 350mA Nonstandard | ||

182 | VPH4-0140-R | Eaton | Unshielded 6 Coil Inductor Array 12-SMD | ||

183 | VPH4-0860-R | Eaton | Unshielded 6 Coil Inductor Array 12-SMD | ||

184 | VPH2-1600-R | Eaton | Unshielded 6 Coil Inductor Array 12-SMD | ||

185 | VP2-0083-R | Eaton | Unshielded 6 Coil Inductor Array 12-SMD | ||

186 | VP2-0116-R | Eaton | Unshielded 6 Coil Inductor Array 12-SMD | ||

187 | P0595NLT | Pulse Electronics Corporation | Unshielded 2 Coil Inductor Array 42μH Inductance - Connected in Series 10.5μH Inductance - Connected in Parallel 4.8 mOhm Max DC Resistance (DCR) - Parallel 19A Nonstandard | ||

188 | VP1-0076-R | Eaton | Unshielded 6 Coil Inductor Array 12-SMD | ||

189 | CTX250-4-R | Eaton | Unshielded 2 Coil Inductor Array 1mH Inductance - Connected in Series 650mA Nonstandard | ||

190 | CTX15-4-R | Eaton | Unshielded 2 Coil Inductor Array 56.64μH Inductance - Connected in Series 14.16μH Inductance - Connected in Parallel 24 mOhm Max DC Resistance (DCR) - Parallel 3A Nonstandard | ||

191 | CTX10-1A-R | Eaton | Unshielded 2 Coil Inductor Array 42.3μH Inductance - Connected in Series 10.58μH Inductance - Connected in Parallel 46 mOhm Max DC Resistance (DCR) - Parallel 2.84A Nonstandard | ||

192 | CTX5-1A-R | Eaton | Unshielded 2 Coil Inductor Array 18.8μH Inductance - Connected in Series 4.7μH Inductance - Connected in Parallel 20 mOhm Max DC Resistance (DCR) - Parallel 4.27A Nonstandard | ||

193 | 744871220 | Wurth Electronics Inc | Shielded 2 Coil Inductor Array 88μH Inductance - Connected in Series 22μH Inductance - Connected in Parallel 90 mOhm Max DC Resistance (DCR) - Parallel 1.85A Nonstandard | ||

194 | 744871330 | Wurth Electronics Inc | Shielded 2 Coil Inductor Array 132μH Inductance - Connected in Series 33μH Inductance - Connected in Parallel 170 mOhm Max DC Resistance (DCR) - Parallel 1.2A Nonstandard | ||

195 | CTX33-2P-R | Eaton | Unshielded 2 Coil Inductor Array 130.7μH Inductance - Connected in Series 32.67μH Inductance - Connected in Parallel 126 mOhm Max DC Resistance (DCR) - Parallel 1.3A Nonstandard | ||

196 | VPH5-0083-R | Eaton | Unshielded 6 Coil Inductor Array Nonstandard | ||

197 | VP5-0053TR-R | Eaton | Unshielded 6 Coil Inductor Array Nonstandard | ||

198 | DRQ127-330-R | Eaton | Shielded 2 Coil Inductor Array 135.7μH Inductance - Connected in Series 33.92μH Inductance - Connected in Parallel 60 mOhm DC Resistance (DCR) - Parallel 3.23A Nonstandard | ||

199 | PM3604-100-RC | Bourns Inc. | Unshielded 2 Coil Inductor Array 400μH Inductance - Connected in Series 100μH Inductance - Connected in Parallel 210 mOhm Max DC Resistance (DCR) - Parallel 980mA Nonstandard | ||

200 | PM3602-300-RC | Bourns Inc. | Unshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300μH Inductance - Connected in Parallel 1.31 Ohm Max DC Resistance (DCR) - Parallel 320mA Nonstandard |
